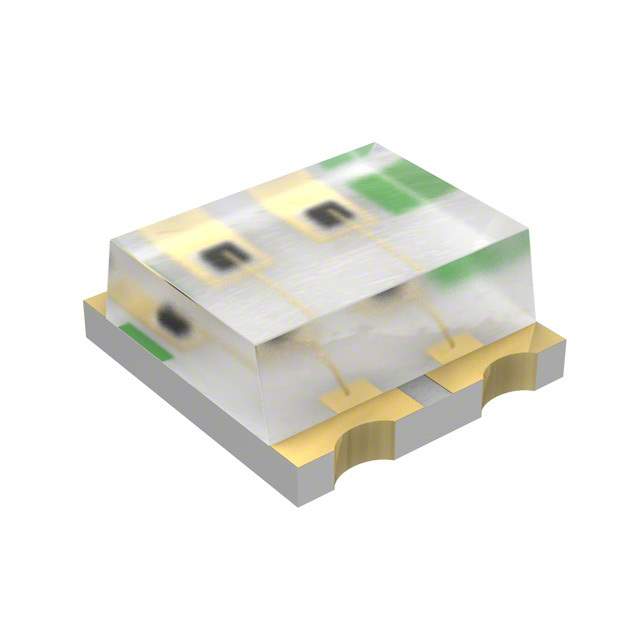

SML-LX0606YGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0606YGC-TR

Part No SML-LX0606YGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/YELLOW CLEAR SMD / Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 0606 (1616 Metric)
Datasheet
SML-LX0606YGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd Green, 10mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.1V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 585nm Yellow
Package / Case 0606 (1616 Metric)
Dimension 1.60mm L x 1.50mm W
Height (Max) 0.70mm
Base Product Number SML-LX0606
Other Names SML-LX0606YGC-TR,67-2187-6,SML-LX0606YGC-TRR,67-2187-2,67-2187-1
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241891-SML-LX0606YGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0606YGC-TR CAD Model

Description

The SML-LX0606YGC-TR is a 2,000 standard package LED indication component from Lumex Opto/Components Inc.

  • Colors: Green and yellow
  • Viewing Angle: 120 degrees
  • Mounting Type: Surface mount device
  • Millicandela Rating: 10mcd for both green and yellow colors
  • Voltage Rating: 2.2V for green and 2.1V for yellow
  • Current: 20mA for both colors
  • Ingress Protection Rating: IP67/IP68 (designed to be dust tight and waterproof)
