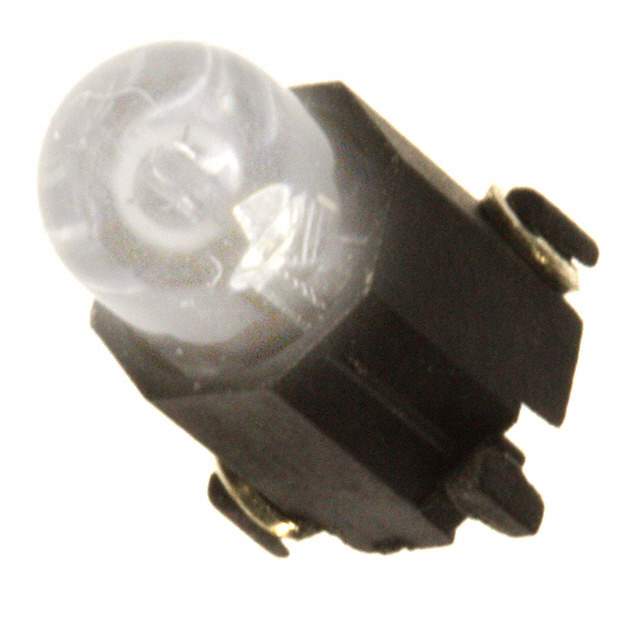

SML-H1505SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-H1505SIC-TR

Part No SML-H1505SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD DOME LED / Red LED Indication - Discrete 2V 2-SMD, 1505
Datasheet
SML-H1505SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 700mcd
Lens Style Round with Domed Top
Lens Size 4.90mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Peak 635nm
Package / Case 2-SMD, 1505
Supplier Device Package Surface Mounted Dome LED
Dimension 6.51mm L x 6.51mm W
Height (Max) 11.00mm
Base Product Number SML-H1505
Other Names SMLH1505SICTR,67-2065-1,67-2065-2,67-2065-6
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241842-SML-H1505SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-H1505SIC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-H1505SIC-TR is a surface mount LED indicator designed for use in various electronic applications.

  • Light Color: Red
  • Viewing Angle: 60°
  • Millicandela Rating: 700mcd
  • Forward Voltage: 2V
  • Operating Current: 20mA
  • Operating Temperature: -40°C to 85°C
  • Package: Tape and reel
  • Height: 11.00mm
  • Dimension: 6.51mm L x 6.51mm W
  • Description: Compact and reliable choice for LED indication in electronic devices
