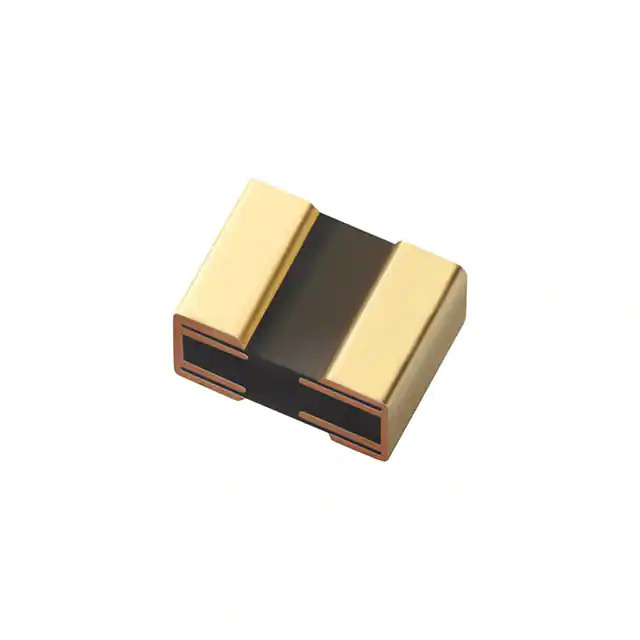

Same model may have multiple batches, images only for reference.
ZEPTOSMDC0015F Littelfuse Inc.
Same model may have multiple batches, images only for reference.

ZEPTOSMDC0015F

Part No ZEPTOSMDC0015F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 15MA 13VDC 0201 / Polymeric PTC Resettable Fuse 13V 15 mA Ih Surface Mount 2-SMD
Datasheet
ZEPTOSMDC0015F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLYSWITCH® zeptoSMDC
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 13V
Current - Hold (Ih) (Max) 15 mA
Current - Trip (It) 80 mA
Current - Max 200 mA
Time to Trip 20 ms
Resistance - Initial (Ri) (Min) 10 Ohms
Resistance - Post Trip (R1) (Max) 150 Ohms
Temperature Range - Operating -20°C ~ 60°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD
Size / Dimension 0.024" L x 0.018" W (0.60mm x 0.45mm)
Height - Seated (Max) -
Thickness (Max) 0.016" (0.40mm)
Lead Spacing -
Approval Agency -
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1361749-ZEPTOSMDC0015F
Ultra Librarian 3D Model Ultra Librarian ZEPTOSMDC0015F CAD Model

Description

The zeptoSMDC0015F is a PTC resettable fuse designed for circuit protection.

  • Temperature Range: -20°C to 60°C
  • Construction: Polymeric
  • Size: 0.024" L x 0.018" W (0.60mm x 0.45mm)
  • Mounting Type: Surface Mount
  • Maximum Current Rating: 200mA
  • Maximum Voltage Rating: 13V
  • Current Trip Rating: 80mA
  • Time to Trip: 20ms
  • Initial Resistance: 10 Ohms
  • Post-Trip Resistance: 150 Ohms
  • Manufacturer: Littelfuse Inc.
