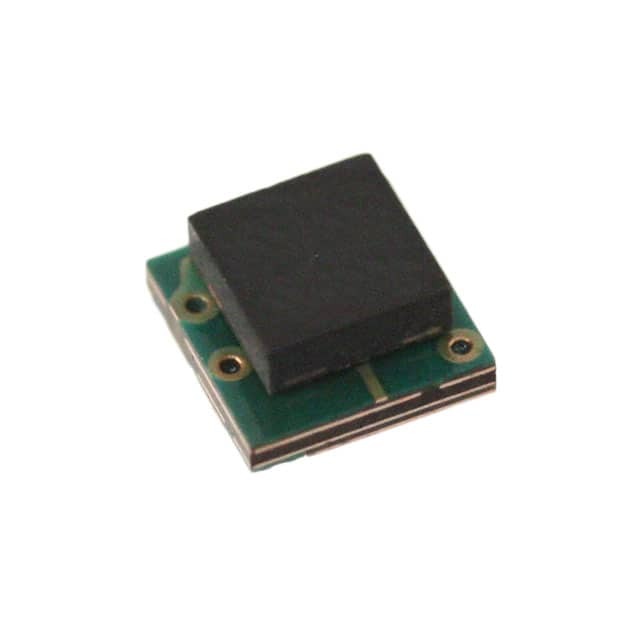

Same model may have multiple batches, images only for reference.
ZEN056V130A16YM
Same model may have multiple batches, images only for reference.

ZEN056V130A16YM

Part No ZEN056V130A16YM
Manufacturer Littelfuse Inc.
Catalog TVS - Mixed Technology
Description TVS DEVICE MIXED SMD
Datasheet
ZEN056V130A16YM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Mixed Technology
Mfr Littelfuse Inc.
Series PolyZen
Package Tape & Reel
Product Status Obsolete
Technology Mixed Technology
Number of Circuits 1
Applications General Purpose
Mounting Type Surface Mount
Package / Case 3-SMD, No Lead
Standard Package 3,000 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 904245-ZEN056V130A16YM
Ultra Librarian 3D Model Ultra Librarian ZEN056V130A16YM CAD Model

Description

The PolyZen is a series of transient voltage suppressors that combines the features of both Zener diodes and PTC devices. The PolyZen ZEN056V130A16YM is designed for general-purpose circuit protection applications.

  • Voltage Clamping: Yes
  • Series: PolyZen
  • Mounting Type: Surface Mountable
  • Package: 3-SMD, No Lead
  • Status: Obsolete
  • Standard Package Quantity: 3,000 pcs
  • MSL Level: 2A
  • Floor Life: 4 weeks
  • REACH: Not affected
