Same model may have multiple batches, images only for reference.

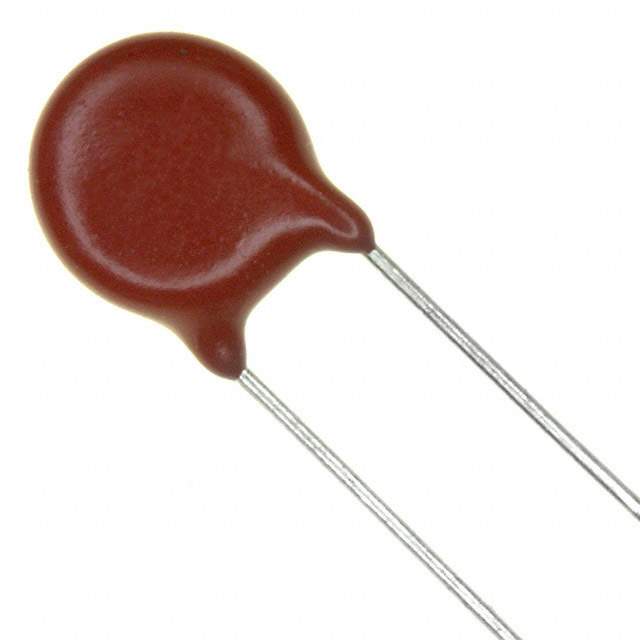

V420LA10P Real Image
Same model may have multiple batches, images only for reference.

V420LA10P

Part No V420LA10P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 680V 2.5KA DISC 10MM  /  680 V 2.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series LA
Package Bulk
Maximum AC Volts 420 V
Maximum DC Volts 560 V
Varistor Voltage (Min) 612 V
Varistor Voltage (Typ) 680 V
Varistor Voltage (Max) 748 V
Current - Surge 2.5 kA
Energy 55J
Number of Circuits 1
Capacitance @ Frequency 140 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 10mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names F3362,1294-V420LA10P,V420LA10P-ND,-1024-V420LA10P
Standard Package 1,000
Win Source Part Number 1103636-V420LA10P
Ultra Librarian 3D Model Ultra Librarian V420LA10P CAD Model

Description

The Littelfuse Inc. V420LA10P is a TVS - Varistor, MOV designed for circuit protection needs.

  • Manufacturer: Littelfuse Inc.
  • Type: TVS - Varistor, MOV
  • Capacitance: 140 pF @ 1 MHz
  • Varistor Voltage Range: 612 V to 748 V
  • Current Surge: 2.5 kA
  • Maximum AC Voltage: 420 V
  • Maximum DC Voltage: 560 V
  • Energy Rating: 55J
  • Mounting Type: Through Hole
  • Standard Package: 1,000
  • ECCN: EAR99
  • HTSUS: 8533.40.4000
