Same model may have multiple batches, images only for reference.

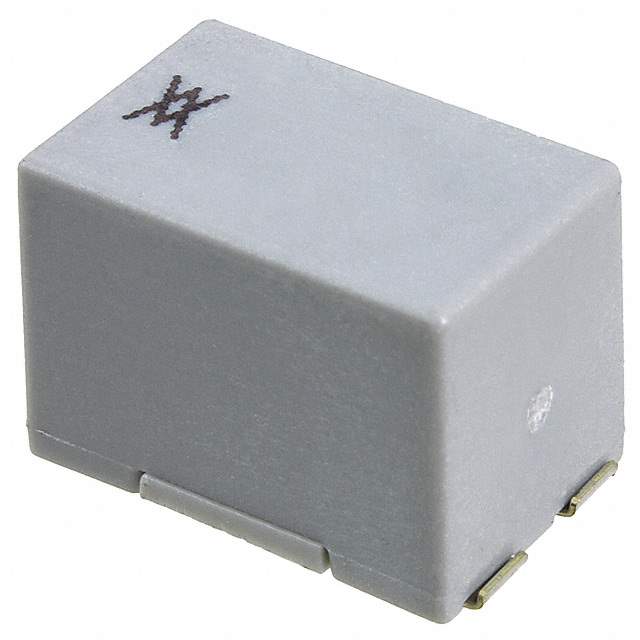

TSM600-250-RA-2 Real Image
Same model may have multiple batches, images only for reference.

TSM600-250-RA-2

Part No TSM600-250-RA-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 0.250A HOLD SMD / PTC Resettable Fuse 0.25A(hold) 0.86A(trip) 250VDC 2W 6s 1Ohm SMD Solder Pad 17.6 X 11.2 X 11.7mm T/R
Datasheet
TSM600-250-RA-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, TSM
Part Status Obsolete(EOL)
Type Polymeric
Voltage - Max 250V (600V Int)
Current - Max 3A
Current - Hold (Ih) (Maximum) 250mA
Current - Trip (It) 860mA
Time to Trip 6s
Resistance - Initial (Ri) (Minimum) 1 Ohm
Resistance - Post Trip (R1) (Maximum) 5 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 4-SMD
Dimension 0.681" L x 0.425" W (17.30mm x 10.80mm)
Thickness (Maximum) 0.451" (11.45mm)
Approvals CSA, UL
Win Source Part Number 798506-TSM600-250-RA-2
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TSM600-250-RA-2 CAD Model

Description

The Littelfuse Inc. TSM600-250-RA-2 is a circuit protection component that is currently limited in supply and demand.

  • Component Type: Polymeric
  • Maximum Voltage: 250V (600V Int)
  • Maximum Current: 3A
  • Operating Temperature: -40°C ~ 85°C
  • Approvals: CSA and UL
