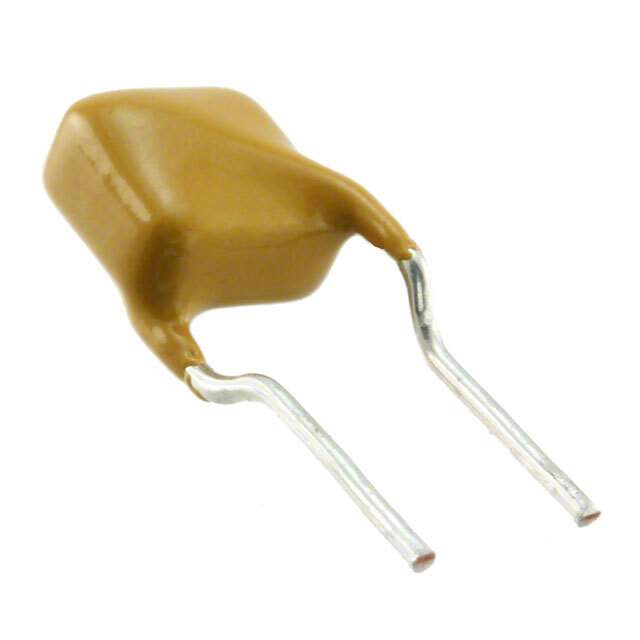

Same model may have multiple batches, images only for reference.

TRF250-120T

Name: TRF250-120T
Brand: Littelfuse Inc.
SKU: 1207425
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TRF250-120T
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 120MA RADIAL / Polymeric PTC Resettable Fuse 60V (250V Int) 120 mA Ih Through Hole Radial, Disc
Datasheet	TRF250-120T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, TRF250
Package	Bag
Type	Polymeric
Voltage - Max	60V (250V Int)
Current - Max	3 A
Current - Hold (Ih) (Max)	120 mA
Current - Trip (It)	240 mA
Time to Trip	1.2 s
Resistance - Initial (Ri) (Min)	7 Ohms
Resistance - Post Trip (R1) (Max)	16 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Max)	0.433" (11.00mm)
Lead Spacing	0.197" (5.00mm)
Approval Agency	CSA, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	-1024-TRF250-120T,RF0013-000
Standard Package	500
Win Source Part Number	1207425-TRF250-120T
Ultra Librarian 3D Model	Ultra Librarian TRF250-120T CAD Model

Alternative Products

Description

The TRF250-120T from Littelfuse Inc. is a PolySwitch® PTC resettable fuse.

Maximum Voltage Rating: 60V (250V Int)
Maximum Current Rating: 3A
Current Hold (Ih): 120mA
Current Trip (It): 240mA
Time to Trip: 1.2s
Mounting Type: Through-hole
Package/Case: Radial, disc
Height (Seated): 0.433" (11.00mm)
Lead Spacing: 0.197" (5.00mm)
Operating Temperature Range: -40°C to 85°C
