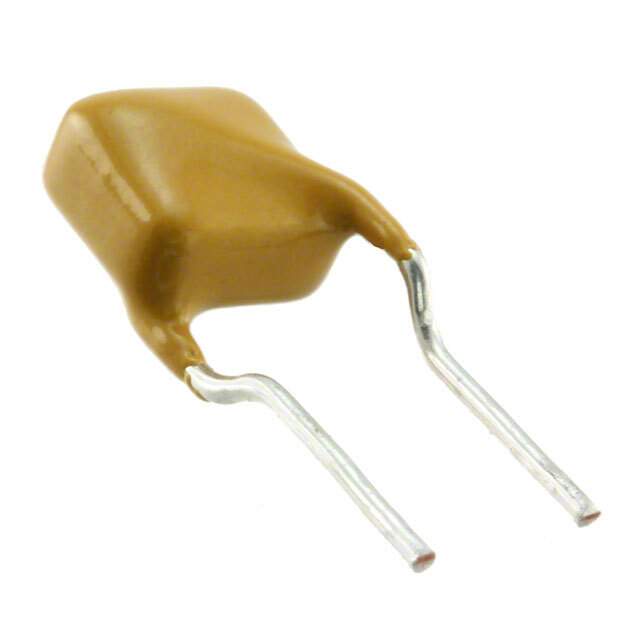

Same model may have multiple batches, images only for reference.

TRF250-120T-R2-B-0.5

Name: TRF250-120T-R2-B-0.5
Brand: Littelfuse Inc.
SKU: 798359
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TRF250-120T-R2-B-0.5
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET .12A HOLD / PTC Resettable Fuse 0.12A(hold) 0.24A(trip) 60VDC 3A 0.8W 0.75s 8Ohm Radial 6.5 X 4.6 X 11mm Bag/Box/Loose
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, TRF250
Packaging	Bulk
Type	Polymeric
Voltage - Max	60V (250V Int)
Current - Max	3A
Current - Hold (Ih) (Maximum)	120mA
Current - Trip (It)	240mA
Time to Trip	750ms
Resistance - Initial (Ri) (Minimum)	8 Ohm
Resistance - Post Trip (R1) (Maximum)	16 Ohm
Operating Temperature Range	-40°C ~ 85°C
Mounting Style	Through Hole
Package	Radial, Disc
Dimension	0.256" L x 0.181" W (6.50mm x 4.60mm)
Height - Seated (Maximum)	0.433" (11.00mm)
Lead Spacing	0.197" (5.00mm)
Approvals	CSA, TUV, UL
Win Source Part Number	798359-TRF250-120T-R2-B-0.5
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TRF250
Introduction Date	November 09, 2015
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian TRF250-120T-R2-B-0.5 CAD Model

Alternative Products

Description

The TRF250-120T-R2-B-0.5 PolySwitch is manufactured by Littelfuse Inc.

Series: PolySwitch, TRF250
Packaging: Bulk
Mounting: Through-hole
Operating Temperature Range: -40°C ~ 85°C
Package: Radial, Disc
Lead Spacing: 0.197" (5.00mm)
Approvals: CSA, TUV, UL
Voltage: Up to 60V (250V Int)
Current: Up to 3A
Current Trip (It): 240mA
Time to Trip: 750ms
Family Name: TRF250
Dimension: 0.256" L x 0.181" W (6.50mm x 4.60mm)
