Same model may have multiple batches, images only for reference.

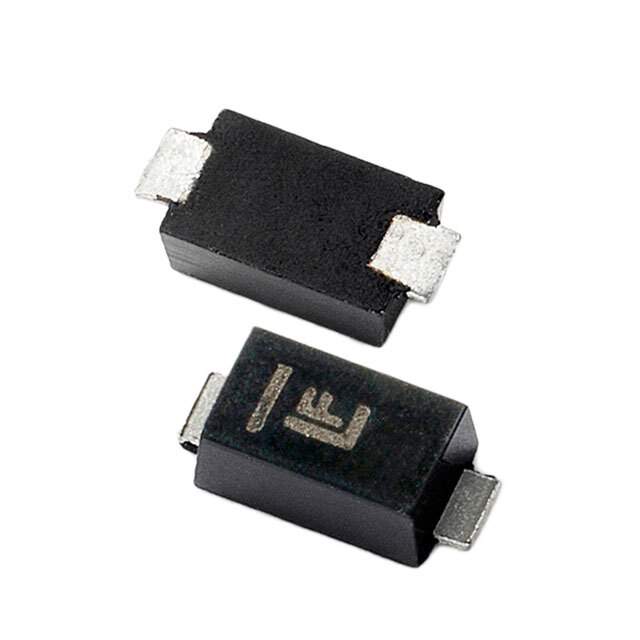

TPSMF4L18A Real Image
Same model may have multiple batches, images only for reference.

TPSMF4L18A

Part No TPSMF4L18A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 18VWM 29.2VC SOD123FL / 29.2V Clamp 13.7A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet
TPSMF4L18A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 18V
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 29.2V
Current - Peak Pulse (10/1000µs) 13.7A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package SOD-123F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F7524TR,F7524CT,F7524DKR,-TPSMF4L18A
Standard Package 3,000
Win Source Part Number 978728-TPSMF4L18A
Ultra Librarian 3D Model Ultra Librarian TPSMF4L18A CAD Model

Description

The Littelfuse Inc. TPSMF4L18A is a zener type circuit protection TVS diode that is designed for use in automotive applications.

  • Voltage - Reverse Standoff (typ): 18V
  • Voltage - Breakdown (min): 20V
  • Voltage - Clamping (max) @ Ipp: 29.2V
  • Supply and demand status: Balanced
