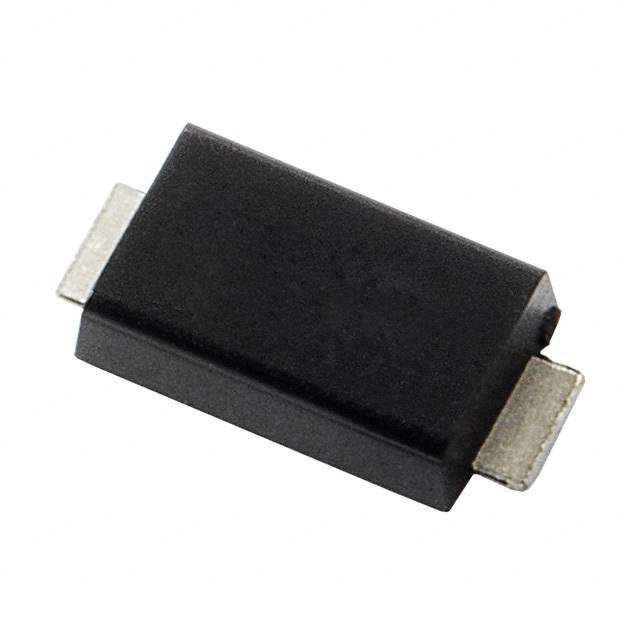

TPSMA6L20A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L20A

Part No TPSMA6L20A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 20VWM 32.4VC SMA
Datasheet
TPSMA6L20A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 20V
Minimum Breakdown Voltage 22.2V
Max Clamping Voltage 32.4V
Peak Pulse Current(Ippm) 18.6A
Power Dissipation - Pd 600W
Applications Automotive
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-221AC
Win Source Part Number 1097363-TPSMA6L20A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPSMA6L20A CAD Model

Description

The Littelfuse TPSMA6L20A is a unidirectional zener diode designed for use in automotive applications.

  • Manufacturer: Littelfuse
  • Diode Type: Zener
  • Application: Automotive
  • Vwm (Stand-off Voltage): 20V
  • Minimum Breakdown Voltage: 22.2V
  • Max Clamping Voltage: 32.4V
  • Peak Pulse Current (Ippm): 18.6A
  • Power Dissipation - Pd: 600W
  • Case/Package: DO-221AC
  • Operating Temperature: -50°C to 150°C (TJ)
  • Supply and Demand Status: Balanced
