Same model may have multiple batches, images only for reference.

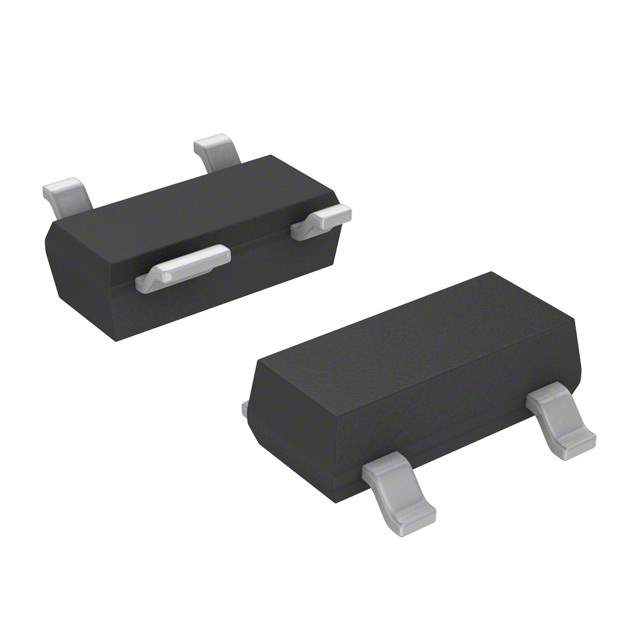

SR05-02CTG Real Image
Same model may have multiple batches, images only for reference.

SR05-02CTG

Part No SR05-02CTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC SOT143
Datasheet
SR05-02CTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 25A (8/20μs)
Power Dissipation - Pd 450W
Power Line Protection Yes
Applications Ethernet
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-143
Win Source Part Number 1101755-SR05-02CTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SR05-02CTG CAD Model

Description

The SR05-02CTG is a steering diode manufactured by Littelfuse Inc.

  • Status: Active
  • Popularity: Medium
  • Application: Ethernet
  • Channels: Two Unidirectional
  • Protection: Power Line Protection
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
