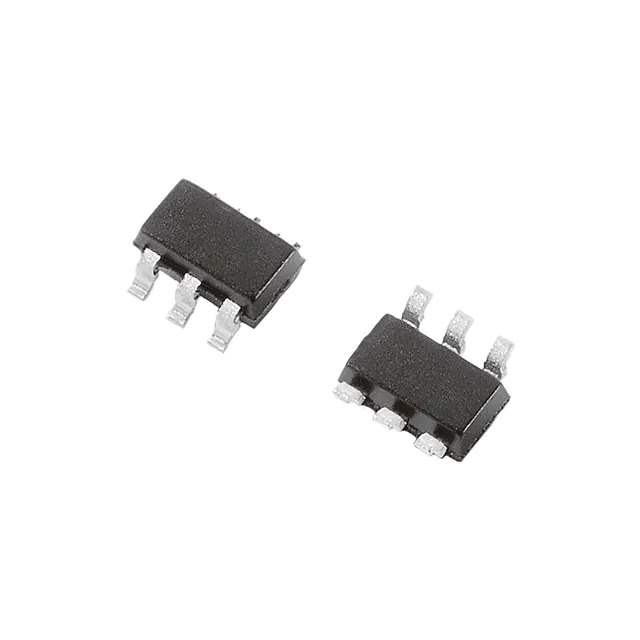

Same model may have multiple batches, images only for reference.

SP4010-02HTG

Name: SP4010-02HTG
Brand: Littelfuse Inc.
SKU: 934725
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP4010-02HTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE ARRAY 10V 23A SOT23-6L
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SP4010, SPA®
Package	Tape & Reel
Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Voltage - Reverse Standoff (Typ)	10V (Max)
Voltage - Breakdown (Min)	10.5V
Voltage - Clamping (Max) @ Ipp	43V
Current - Peak Pulse (10/1000µs)	23A (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6L
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	934725-SP4010-02HTG
Ultra Librarian 3D Model	Ultra Librarian SP4010-02HTG CAD Model

Alternative Products

Description

The SP4010-02HTG is a steering type TVS diode designed for general-purpose circuit protection.

Series: SP4010 and SPA
Reverse Standoff Voltage: 10V
Breakdown Voltage: 10.5V
Clamping Voltage: 43V @ 23A (8/20μs)
Channels: Two Unidirectional
Mounting: Surface Mountable
Package: SOT-23-6
Capacitance: 1pF @ 1MHz
Operating Temperature Range: -40°C to 125°C
Power Line Protection: No
