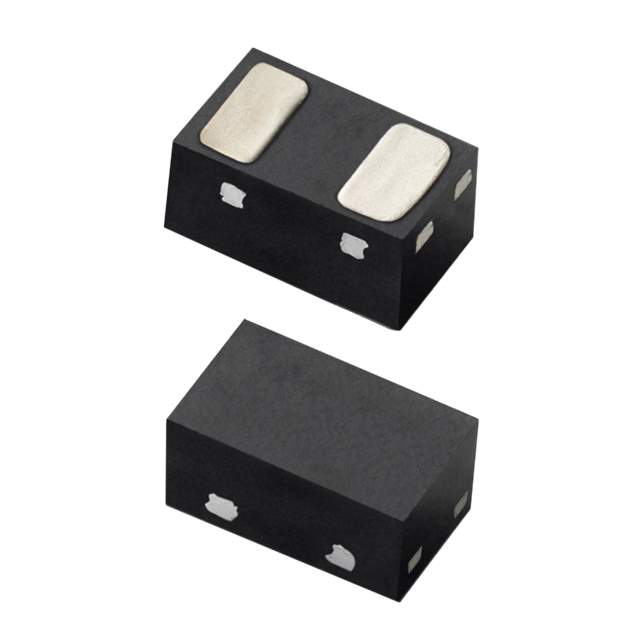

Same model may have multiple batches, images only for reference.

SP3118-01ETG

Name: SP3118-01ETG
Brand: Littelfuse Inc.
SKU: 674383
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP3118-01ETG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	0.3pF 10KV Bidirectional Discrete TVS
Datasheet	SP3118-01ETG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	SP3118, SPA
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V (Maximum)
Maximum Clamping Voltage	38V
Current - Peak Pulse (10/1000μs)	2A (8/20μs)
Power Line Protection	No
Applications	General
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature Range	-40°C ~ 125°C (TJ)
Mounting	SMD
Package	SOD-882
Manufacturer Package	SOD-882
Win Source Part Number	1257071-SP3118-01ETG
Manufacturer Homepage	www.littelfuse.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SP3118-01ETG CAD Model

Description

The SP3118-01ETG is a zener-type electronic component manufactured by Littelfuse Inc.

Manufacturer: Littelfuse Inc.
Series: SP3118 and SPA series
Package: Reel - TR
Application: General
Mounting Type: Surface Mount
Channel: Bidirectional
Voltage-Reverse Standoff: 18V (maximum)
Current-Peak Pulse: 2A (8/20μs)
Capacitance @ Frequency: 0.3pF @ 1MHz
Supply and Demand Status: Balanced
Win Source Part Number: 1257071-SP3118-01ETG
