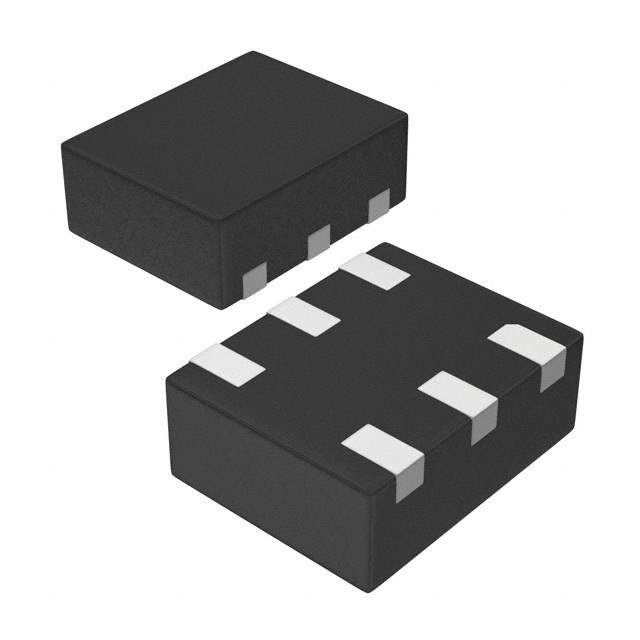

SP3002-04UTG Real Image
Same model may have multiple batches, images only for reference.

SP3002-04UTG

Part No SP3002-04UTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 13VC UDFN6
Datasheet
SP3002-04UTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 6V (Max)
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 4.5A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-μDFN (1.6x1.6)
Win Source Part Number 030594-SP3002-04UTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP3002-04UTG CAD Model

Description

The Littelfuse Inc. 030594-SP3002-04UTG is a steering (rail to rail) type circuit protection component used for general purposes.

  • Packaging: reel - TR
  • Mounting: SMD (SMT)
  • Channels: 4 unidirectional
  • Protection: power line
  • Case/Package: 6-μDFN (1.6x1.6)
  • Stand-off Voltage (Vwm): 6V (max)
  • Peak Pulse Current (Ippm): 4.5A (8/20μs)
  • Category: Circuit Protection
  • Status: active
  • Temperature Range: -40°C to 125°C (TJ)
