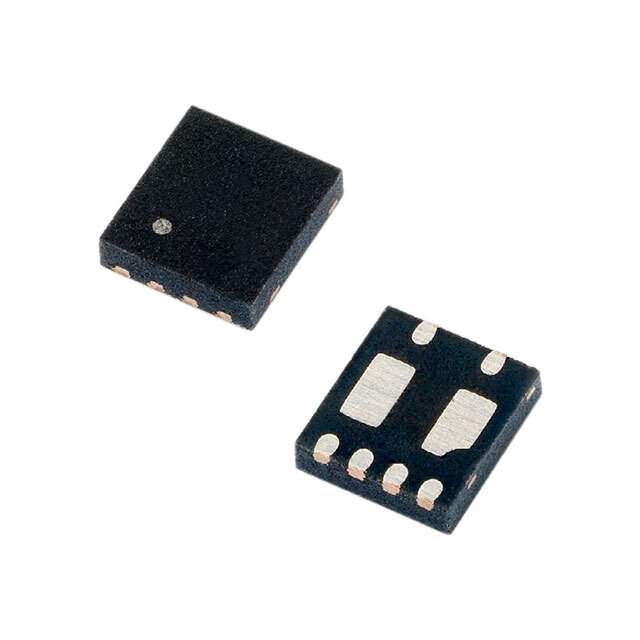

SP1255PUTG

Name: SP1255PUTG
Brand: Littelfuse Inc.
SKU: 517928
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SP1255PUTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	ESD Suppressor Diode Diode Array Uni-Dir 4V Automotive 6-Pin UDFN EP T/R / TVS DIODE 4VWM 8.5VC DFN6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
STAND-OFF Voltage (Vwm)	4V (Max)
Minimum Breakdown Voltage	4.5V
Max Clamping Voltage	8.5V
Peak Pulse Current(Ippm)	2A (8/20μs)
Power Line Protection	Yes
Applications	USB OTG
Capacitance @ Frequency	0.5pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	6-UDFN (1.8x2)
Win Source Part Number	1101149-SP1255PUTG
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	SP1255P
Introduction Date	November 18, 2014
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian SP1255PUTG CAD Model

Alternative Products

Description

The SP1255PUTG is a steering (rail to rail) type TVS diode from Littelfuse Inc.

Package: 6-UDFN (1.8x2)
Application: USB OTG
Channels: 3 Unidirectional
Function: Power line protection
Capacitance: 0.5pF @ 1MHz
Peak Pulse Current(Ippm): 2A (8/20μs)
Maximum Clamping Voltage: 8.5V
Operating Temperature: -40°C to 125°C (TJ)
Popularity: Popular
Supply and Demand Status: Sufficient
