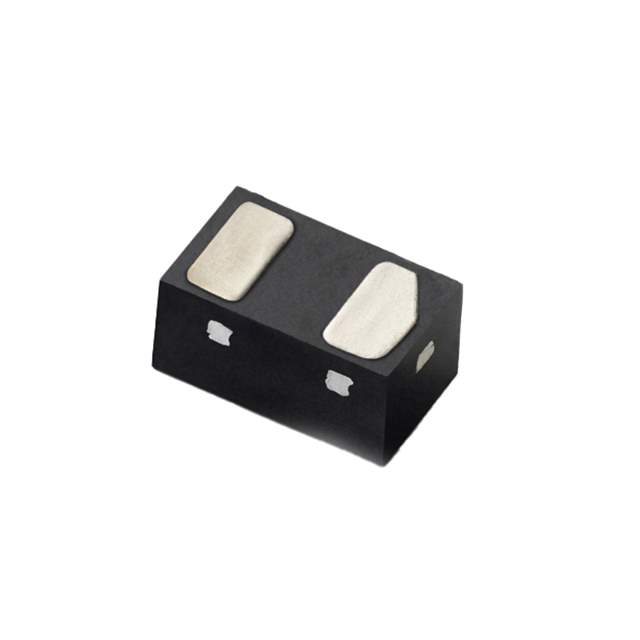

Same model may have multiple batches, images only for reference.

SP1250-01ETG

Name: SP1250-01ETG
Brand: Littelfuse Inc.
SKU: 1111468
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP1250-01ETG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 10VC SOD882 / 10V Clamp 50A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SP1250, SPA®
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	10V
Current - Peak Pulse (10/1000µs)	50A (8/20µs)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	118pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	SOD-882
Supplier Device Package	SOD-882
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	18-SP1250-01ETGDKR,18-SP1250-01ETGCT,18-SP1250-01ETGTR
Standard Package	10,000
Win Source Part Number	1111468-SP1250-01ETG
Ultra Librarian 3D Model	Ultra Librarian SP1250-01ETG CAD Model

Alternative Products

Description

The Littelfuse SP1250-01ETG is a Zener diode designed for use in circuit protection applications, particularly in the automotive industry.

Voltage Rating (Max): 5V
Voltage Breakdown (Min): 5.5V
Voltage Clamping (Max) @ Ipp: 10V
Capacitance @ Frequency: 118pF @ 1MHz
Current Peak Pulse (10/1000µs): 50A (8/20µs)
Package: SOD-882
Temperature Range: -40°C to 125°C (TA)
