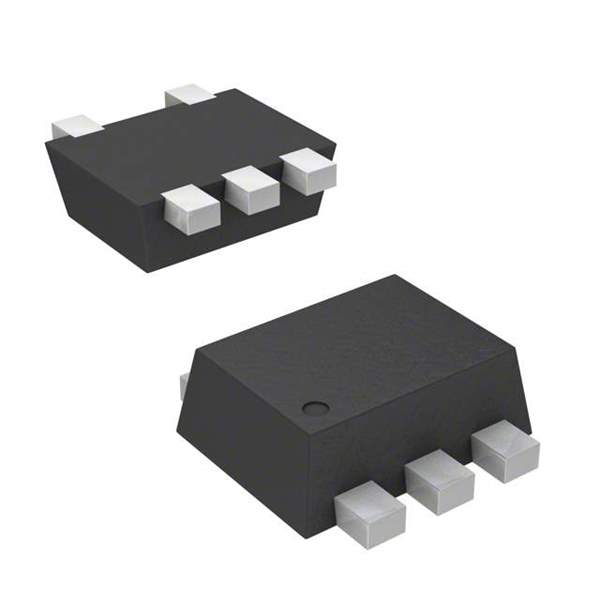

SP1001-04XTG

Part No SP1001-04XTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 13VC SOT553
Datasheet
SP1001-04XTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 7V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-553
Win Source Part Number 102125-SP1001-04XTG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP1001-04XTG CAD Model

Description

The SP1001-04XTG from Littelfuse Inc. is a zener-type circuit protection device.

  • Type: zener-type
  • Application: general-purpose
  • Channels: four unidirectional channels
  • Mounting: surface-mount technology (SMT)
  • Case/Package: SOT-553
  • Stand-off Voltage (Vwm): 5.5V (Max)
  • Minimum Breakdown Voltage: 7V
  • Peak Pulse Current(Ippm): 2A (8/20μs)
  • Power Dissipation - Pd: not specified
  • Supply and Demand Status: balance
