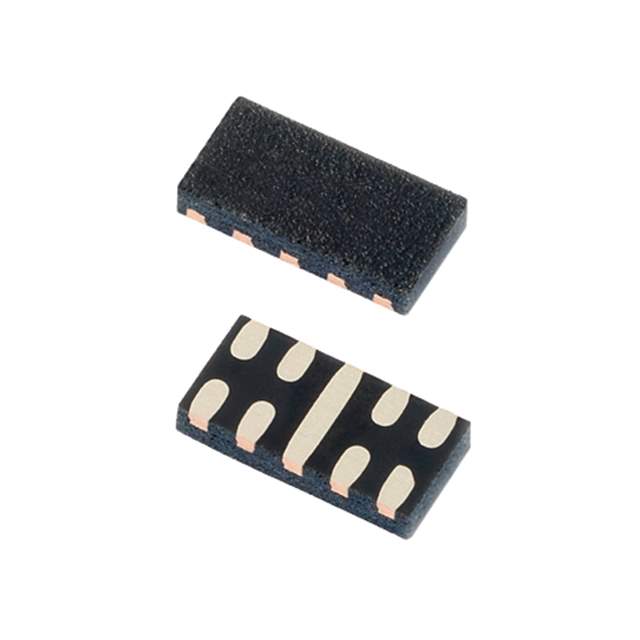

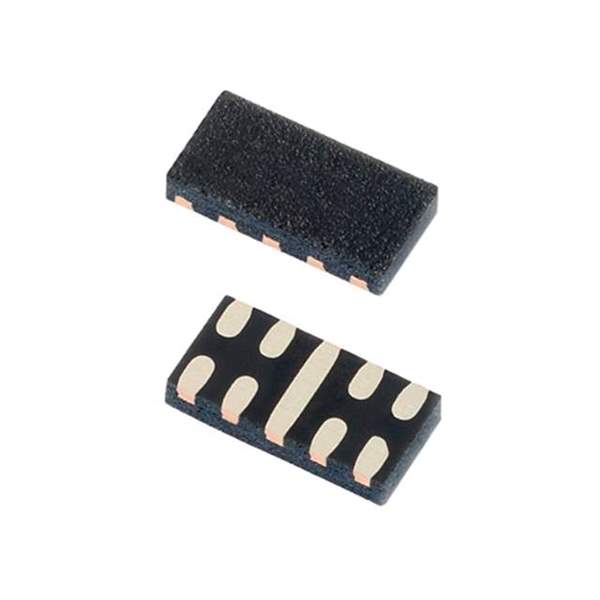

SP0524PUTG Real Image
Same model may have multiple batches, images only for reference.

SP0524PUTG

Part No SP0524PUTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 7VC UDFN10
Datasheet
SP0524PUTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Max Clamping Voltage 7V (Typ)
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Line Protection Yes
Applications Automotive
Capacitance @ Frequency 0.5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-μDFN (2.5x1.0)
Win Source Part Number 1101140-SP0524PUTG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SP0524PUTG CAD Model

Description

The Littelfuse Inc. 1101140-SP0524PUTG is an electronic component manufactured by.

  • Status: Active
  • Usage: Circuit protection
  • Application: Automotive
  • Packaging: Reel-TR
  • Mounting: Surface mount technology (SMT)
  • Capacitance: 0.5pF @ 1MHz
  • Stand-off Voltage (Vwm): 5V (Max)
  • Clamping Voltage (Max): 7V (Typ)
  • Peak Pulse Current(Ippm): 4A (8/20μs)
  • Power Dissipation - Pd: -
