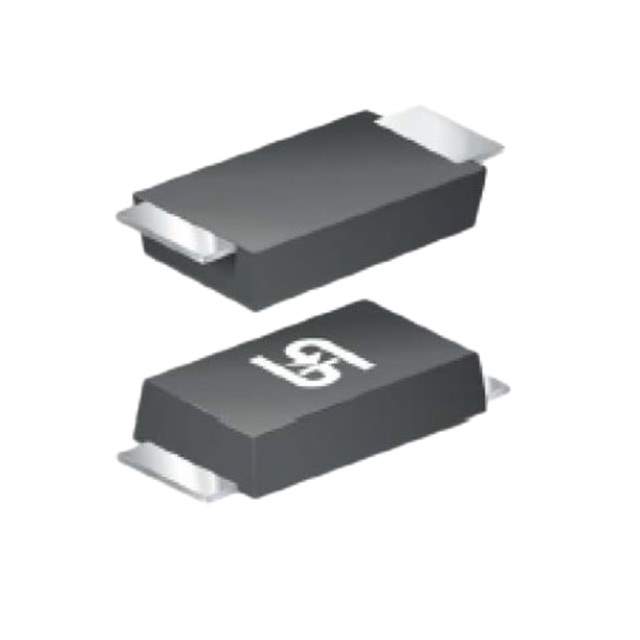

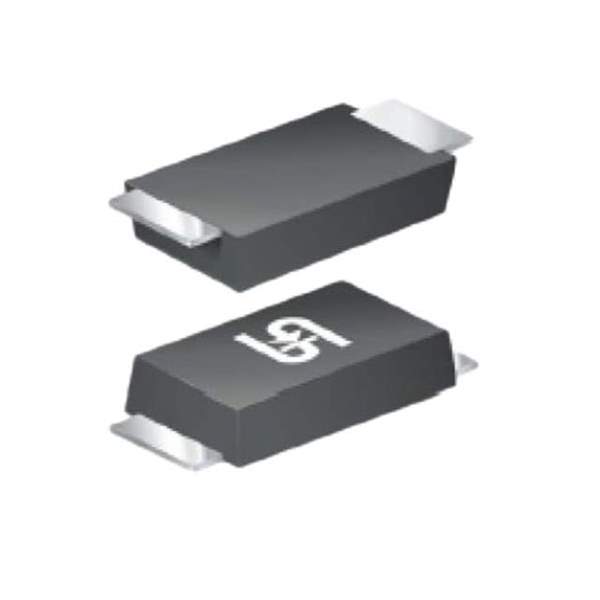

SMF6.0A Real Image SMF6.0A Real Image
Same model may have multiple batches, images only for reference.
SMF6.0A Real Image SMF6.0A Real Image
SMF6.0A Real Image SMF6.0A Real Image
Same model may have multiple batches, images only for reference.

SMF6.0A

Part No SMF6.0A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6VWM 10.3VC SOD123
Datasheet
SMF6.0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 6V
Minimum Breakdown Voltage 6.67V
Max Clamping Voltage 10.3V
Peak Pulse Current(Ippm) 19.4A
Power Dissipation - Pd 200W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-123F
Win Source Part Number 1098324-SMF6.0A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMF6.0A CAD Model

Description

The Littelfuse Inc. 421644 is a Zener type diode manufactured by Littelfuse Inc.

  • Voltage - Stand off (Typ): 6V
  • Voltage - Breakdown Minimum: 6.67V
  • Voltage - Clamping (Max) @ Ipp: 10.3V
  • Current - Peak Pulse (10/1000µs): 19.4A
  • Operating Temperature: -55°C to 150°C (TJ)
  • Mounting Type: SMD (SMT)
  • Power - Peak Pulse: 200W
