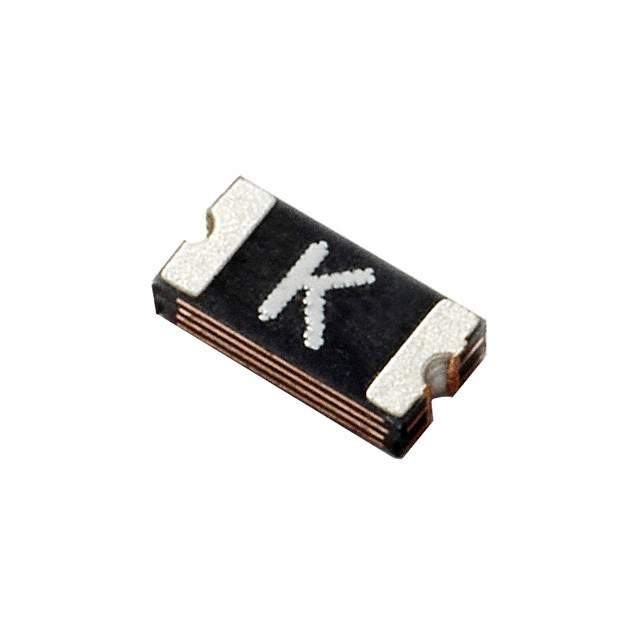

The SMD1206P150TSA is a PolySwitch resettable fuse from Littelfuse Inc., designed to provide reliable overcurrent protection for a variety of electronic devices. Its surface-mount design and compact size make it ideal for space-constrained applications, while its resettable functionality eliminates the need for manual fuse replacement, reducing maintenance costs and downtime.

Applications

• Hard Disk Drives (HDDs): Protecting sensitive HDD circuits from overcurrent conditions.
• Solid State Drives (SSDs): Providing overcurrent protection for SSD controllers and memory.
• Digital Cameras: Protecting internal circuitry from current spikes.
• GPS Devices: Ensuring reliable operation of GPS modules in various applications.
• Wireless Routers: Protecting router components from electrical faults.

Features

• Surface Mount Package: Facilitates automated assembly and reduces manufacturing costs.
• 1206 Footprint: Offers a compact size for high-density PCB layouts.
• Resettable Fuse: Automatically returns to a conductive state after an overcurrent event is cleared.
• Low Profile: Minimizes the overall height of the component on the circuit board.
• Fast Trip Time: Quickly interrupts the circuit during an overcurrent condition.
• RoHS Compliant: Meets environmental standards for hazardous substance restriction.

Benefits

• Enhanced Circuit Protection: Prevents damage to electronic components caused by overcurrents.
• Reduced Maintenance: Eliminates the need to replace blown fuses, saving time and money.
• Improved Reliability: Increases the overall reliability of electronic devices.
• Lower Operating Costs: Reduces the total cost of ownership for electronic equipment.
• Space Saving: Compact size allows for more efficient use of PCB space.

Additional Details

The SMD1206P150TSA has a hold current (Ih) of 1.5 A and a trip current (It) of 3.0 A. It is rated for a maximum voltage of 6 VDC and a maximum interrupt current of 40 A. The operating temperature range is from -40°C to +85°C. This PolySwitch device uses a polymeric positive temperature coefficient (PPTC) material, which increases its resistance dramatically when exposed to excessive current. This effectively limits the current flow and protects the circuit. Once the overcurrent condition is resolved and the device cools down, the PPTC material returns to its low resistance state, allowing the circuit to resume normal operation.
