Same model may have multiple batches, images only for reference.

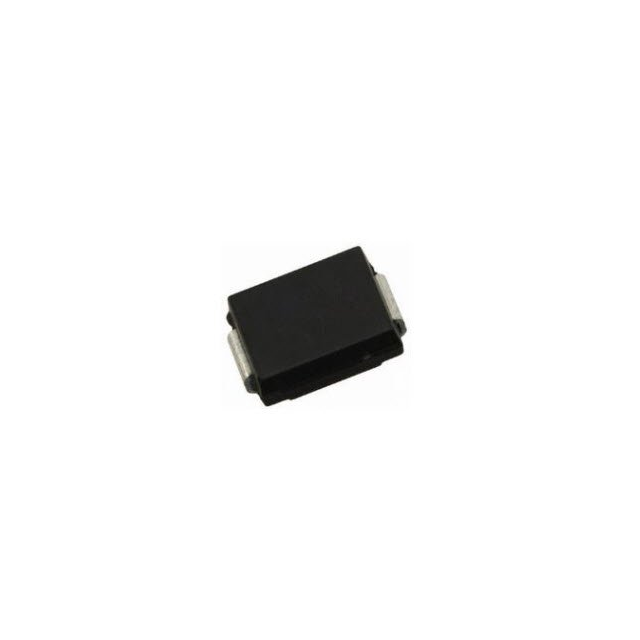

SMBJ180C Real Image
Same model may have multiple batches, images only for reference.

SMBJ180C

Part No SMBJ180C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 180VWM 306.6VC SMB / TVS Diode Single Bi-Dir 180V 600W 2-Pin SMB T/R
Datasheet
SMBJ180C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SMBJ
Packaging Reel package
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 180V
Minimum Breakdown Voltage 190.35V
Maximum Clamping Voltage 306.6V
Current - Peak Pulse (10/1000μs) 2.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package DO-214AA, SMB
Manufacturer Package DO-214AA (SMBJ)
Win Source Part Number 794642-SMBJ180C
Popularity Medium
Supply and Demand Status Limited
Family Name SMBJ180C
Introduction Date June 01, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMBJ180C CAD Model

Description

The Littelfuse Inc. SMBJ180C is a bidirectional zener diode.

  • Applications: General-Purpose
  • Voltage Reverse Standoff: 180V
  • Peak Pulse Current: 2.1A
  • Peak Pulse Power: 600W
  • Maximum Clamping Voltage: 306.6V
  • Package: DO-214AA (SMB)
  • Minimum Breakdown Voltage: 190.35V
  • Halogen-Free Compliance: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
