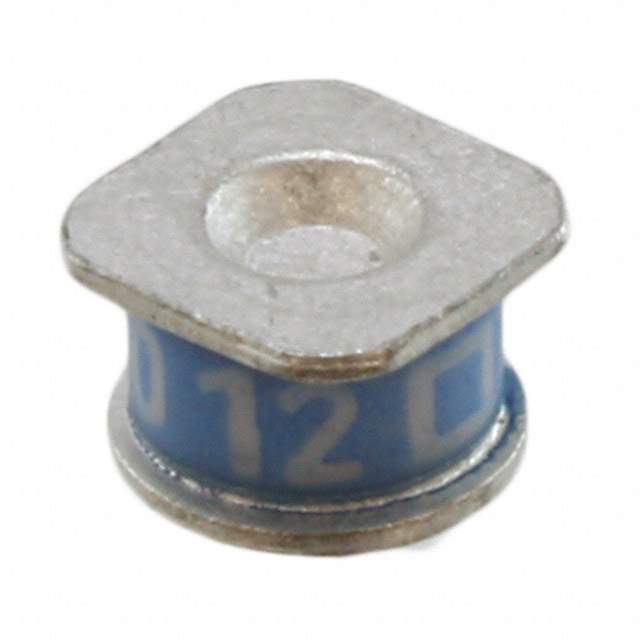

The SL1002A470SM is a SIDACtor® protection thyristor designed and manufactured by Littelfuse Inc. Like other SIDACtor devices, it is primarily used to protect sensitive telecommunications equipment from voltage surges caused by events such as lightning strikes, power induction, and other electrical transients. The 'SM' suffix indicates it is designed for surface-mount assembly.

Applications:

• Protection of telecommunication lines (e.g., central office equipment, customer premises equipment).
• Surge protection for modems and routers.
• Protection for DSL (Digital Subscriber Line) interfaces.
• Safeguarding VoIP (Voice over Internet Protocol) equipment.
• Protection of set-top boxes and other network connected devices.

Features:

• Low voltage overshoot during surge events.
• High surge current capability, able to withstand substantial surges.
• Surface mount package for automated assembly.
• RoHS compliant, meeting environmental regulations.
• Low on-state voltage, minimizing voltage drop during conduction.

Benefits:

• Improved reliability of protected equipment by preventing surge damage.
• Reduced equipment downtime and associated maintenance costs.
• Extended product lifespan through effective surge protection.
• Enhanced safety and compliance with industry regulatory standards.
• Simplified circuit design with a compact, integrated protection solution.

Additional Details:

The SL1002A470SM has specific voltage and current handling specifications which are available within the Littelfuse datasheet. The prefix ‘SL1002A’ refers to a particular SIDACtor series with given characteristics. The '470' within the part number most likely refers to the breakover voltage (VBO) of the device, typically expressed in volts (e.g., 470V). It operates by rapidly transitioning to a low on-state voltage when a surge event exceeds its breakover voltage, diverting the excess current away from the protected circuitry. Proper selection requires carefully considering the characteristics of the telecommunications line, expected surge levels, and applicable regulatory compliance requirements. Construction ensures it can reliably handle high surge currents without damage. The breakover voltage (VBO) should be selected to be above the normal peak operating voltage but remain below the damage threshold voltage of the protected equipment. Holding current and on-state voltage characteristics are important for maintaining proper operation during and after a surge.
