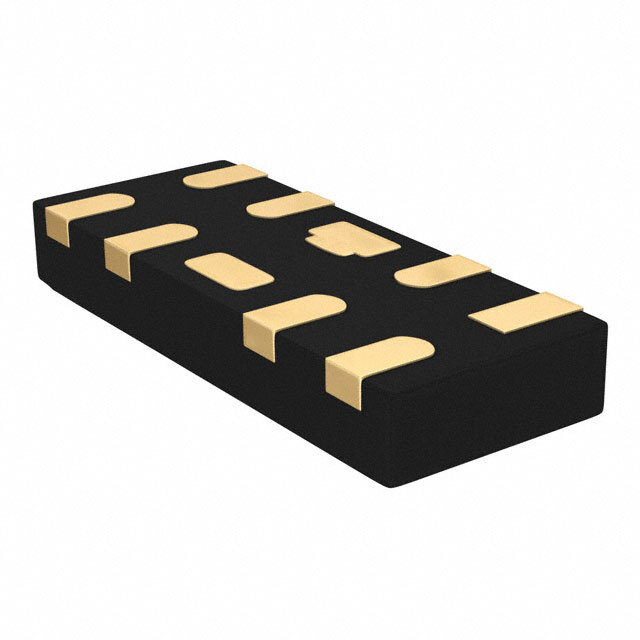

SESD1004Q4UG-0020-090 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

SESD1004Q4UG-0020-090

Part No SESD1004Q4UG-0020-090
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 7VWM 9.2VC DFN
Datasheet
SESD1004Q4UG-0020-090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 9V (Typ)
Max Clamping Voltage 9.2V (Typ)
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications Automotive, HDMI
Capacitance @ Frequency 0.2pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-XDFN (1x2.5)
Win Source Part Number 028234-SESD1004Q4UG-0020-090
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SESD1004Q4UG-0020-090 CAD Model

Description

The Littelfuse Inc. SESD1004Q4UG-0020-090 is a Zener diode designed for use in circuit protection applications such as automotive and HDMI.

  • Application: Circuit protection (automotive, HDMI)
  • Type: Unidirectional
  • Channels: Four
  • Stand-off Voltage (Max): 7V
  • Breakdown Voltage (Typ): 9V
  • Clamping Voltage (Typ): 9.2V
  • Peak Pulse Current: 2A (8/20μs)
  • Operating Temperature: -55°C to 125°C (TJ)
  • Package: 10-XDFN (1x2.5)
  • Popularity: High
  • Supply and Demand: Balanced
