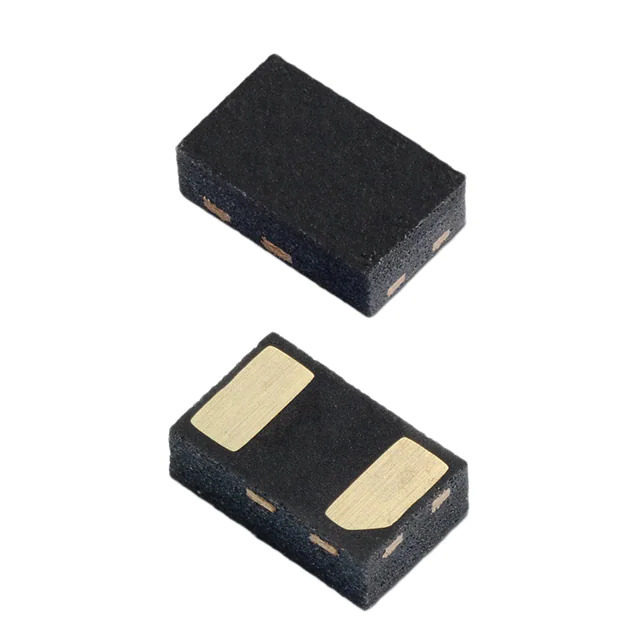

Same model may have multiple batches, images only for reference.

SC1122-01UTG

Name: SC1122-01UTG
Brand: Littelfuse Inc.
SKU: 1379730
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SC1122-01UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 22VWM 35.5VC 2DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SC11xx
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V (Max)
Voltage - Breakdown (Min)	23V
Voltage - Clamping (Max) @ Ipp	35.5V (Typ)
Current - Peak Pulse (10/1000µs)	27A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	160pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0603 (1610 Metric)
Supplier Device Package	2-DFN (1.6x1)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1379730-SC1122-01UTG
Ultra Librarian 3D Model	Ultra Librarian SC1122-01UTG CAD Model

Alternative Products

Description

The SC1122-01UTG is a Zener type transient voltage suppressor (TVS) diode from Littelfuse Inc.

Type: Zener
Reverse Standoff Voltage: 22V
Breakdown Voltage: 23V
Clamping Voltage: 35.5V @ Peak Pulse Current
Peak Pulse Current: 27A (10/1000µs), 27A (8/20µs)
Application: General Purpose
Mounting Type: Surface Mount
Package / Case: 0603 (1610 Metric)
Supplier Device Package: 2-DFN (1.6x1)
Series: SC11xx
Packaging: Tape & Reel (TR)
Operating Temperature: -40°C to 125°C (TA)
REACH Status: Unaffected
Product Status: Active
