Same model may have multiple batches, images only for reference.

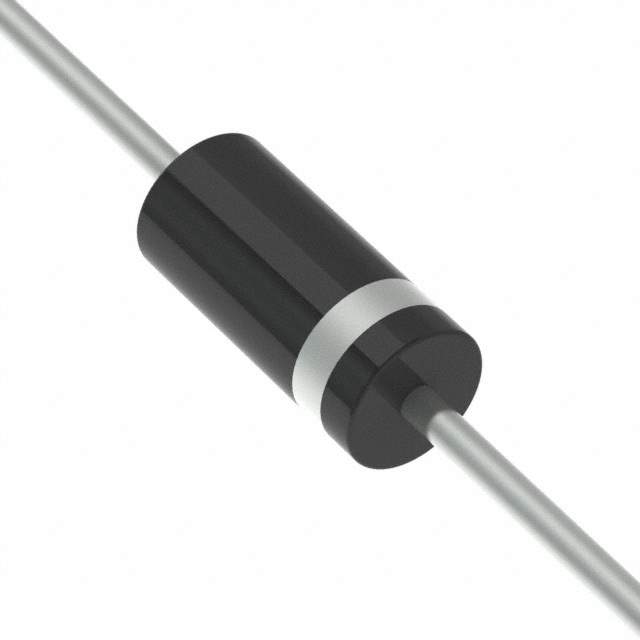

SA5.0A Real Image
Same model may have multiple batches, images only for reference.

SA5.0A

Part No SA5.0A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC DO204AC
Datasheet
SA5.0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 55.4A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC (DO-15)
Win Source Part Number 1094313-SA5.0A
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking, Computers & Computer Peripherals, Industrial, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian SA5.0A CAD Model

Description

The SA5.0A is a Zener Diode manufactured by Littelfuse Inc.

  • Application: General purpose
  • Stand-off Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 6.4V
  • Maximum Clamping Voltage: 9.2V
  • Peak Pulse Current(Ippm): 55.4A
  • Power Dissipation - Pd: 500W
  • Temperature Range: -55°C to 175°C (TJ)
  • Mounting: Through hole
  • Applications: Communications & networking, computers & computer peripherals, industrial, and consumer electronics
