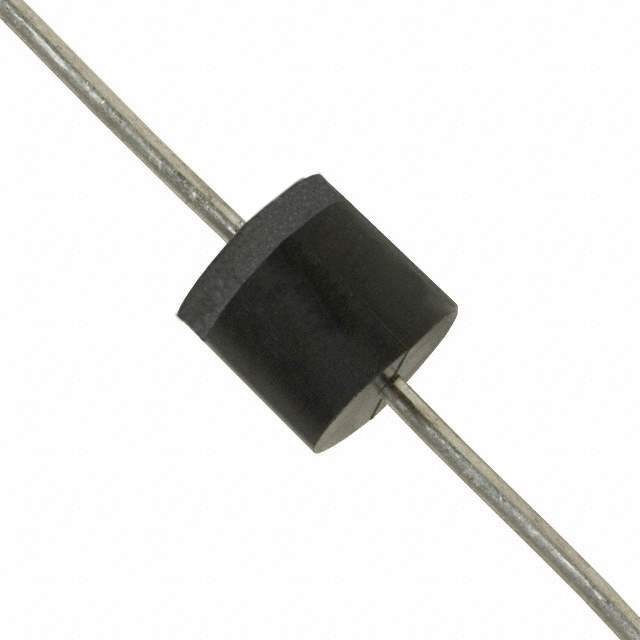

Same model may have multiple batches, images only for reference.

TP5KP33A

Name: TP5KP33A
Brand: Littelfuse Inc.
SKU: 1100718
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TP5KP33A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 33VWM 53.3VC P600 / 53.3V Clamp 95.7A Ipp Tvs Diode Through Hole P600
Datasheet	TP5KP33A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TP5KP
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	33V
Voltage - Breakdown (Min)	36.7V
Voltage - Clamping (Max) @ Ipp	53.3V
Current - Peak Pulse (10/1000µs)	95.7A
Power - Peak Pulse	5000W (5kW)
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	P600, Axial
Supplier Device Package	P600
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	-TP5KP33A,1294-TP5KP33A,F7623CT,F7623TR
Standard Package	800
Win Source Part Number	1100718-TP5KP33A
Ultra Librarian 3D Model	Ultra Librarian TP5KP33A CAD Model

Alternative Products

Description

The 1100718-TP5KP33A is a Zener type TVS diode designed for use in automotive applications.

Device Category: Circuit Protection - TVS Diodes
Voltage-Reverse Standoff (Typ): 33V
Voltage-Breakdown (Min): 36.7V
Voltage-Clamping (Max) @ Ipp: 53.3V
Power-Peak Pulse: 5000W (5kW)
Current-Peak Pulse (10/1000µs): 95.7A
Mounting Type: Through Hole
Package: P600, Axial
Supplier Device Package: P600
Temperature Range: -55°C to 150°C (TJ)
