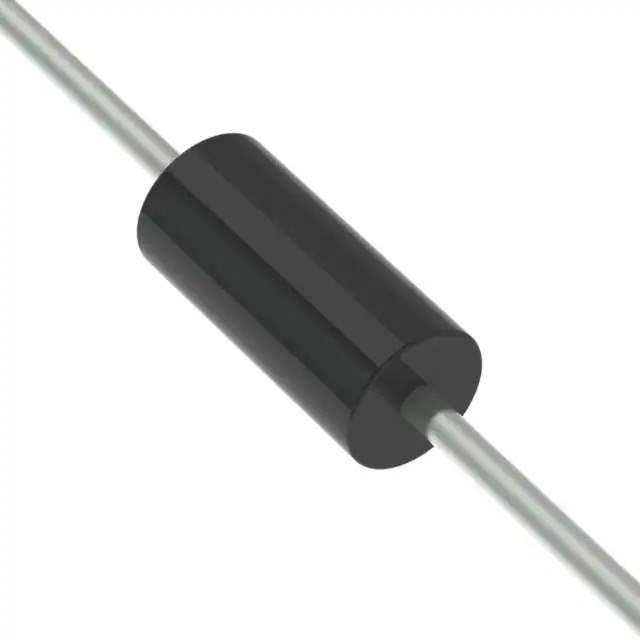

Same model may have multiple batches, images only for reference.

SA16CA

Name: SA16CA
Brand: Littelfuse Inc.
SKU: 311327
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SA16CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 16VWM 26VC DO204AC
Datasheet	SA16CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SA
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	16V
Voltage - Breakdown (Min)	17.8V
Voltage - Clamping (Max) @ Ipp	26V
Current - Peak Pulse (10/1000µs)	19.6A
Power - Peak Pulse	500W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	311327-SA16CA
Ultra Librarian 3D Model	Ultra Librarian SA16CA CAD Model

Alternative Products

Description

The 311327-SA16CA is a transient voltage suppressor (TVS) diode from the SA series.

Type: bidirectional Zener diode
Application: general-purpose circuit protection
Reverse Standoff Voltage: 16V
Breakdown Voltage: 17.8V
Clamping Voltage: 26V
Peak Pulse Power: 500W
Package: DO-204AC (DO-15) axial package
Operating Temperature Range: -55°C to 175°C
Status: active
Manufacturer: Littelfuse Inc.
