Same model may have multiple batches, images only for reference.

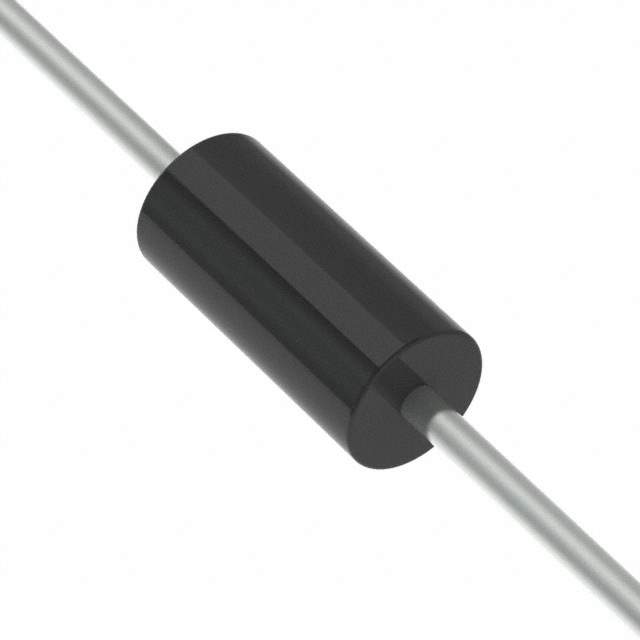

SA15CA Real Image
Same model may have multiple batches, images only for reference.

SA15CA

Part No SA15CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 15VWM 24.4VC DO204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Standard Package 1
Category Circuit Protection
Family TVS - Diodes
Series SA
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 24.4V
Current - Peak Pulse (10/1000µs) 20.9A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-204AC DO-15 Axial
Manufacturer Device Package DO-204AC (DO-15)
Catalog SA Series
Win Source Part Number 042506-SA15CA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SA15CA CAD Model

Description

The SA15CA is a unidirectional TVS diode from Littelfuse Inc. It is designed for use in general-purpose applications where it provides reliable protection against voltage surges.

  • Voltage Reverse Standoff: 15V
  • Breakdown Voltage: 16.7V
  • Clamping Voltage: up to 24.4V @ 20.9A peak pulse current
  • Peak Pulse Power Rating: 500W
  • Package: DO-204AC (DO-15) axial package
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Application: ideal for use in a variety of applications, including power supplies, telecommunications equipment, and industrial controls
