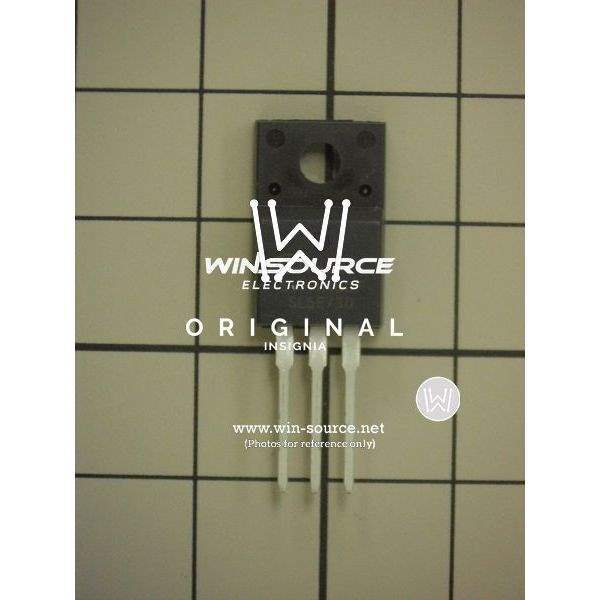

The SVF4N60F is a high-voltage N-channel MOSFET manufactured by Silan Microelectronics, designed for efficient power switching applications. This MOSFET offers a good balance between voltage handling, on-resistance, and switching speed, making it suitable for a variety of power electronics applications.

Applications:

• Switching Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits
• DC-DC converters
• Electronic ballasts for lighting applications
• Motor control circuits

Features:

• High Voltage: V_DSS = 600V
• Low On-Resistance: Specific R_DS(on) value can be found in the datasheet (typically a few ohms depending on V_GS and I_D).
• Fast Switching Speed: Enables efficient operation in high-frequency switching applications.
• Avalanche Energy Rated: Provides robustness against voltage transients.
• TO-220F Package: Offers good thermal performance and electrical isolation.

Benefits:

• High Efficiency: Low on-resistance minimizes conduction losses.
• Reliable Performance: Avalanche rating enhances robustness and reliability.
• Simplified Design: Fast switching simplifies gate drive requirements.
• Reduced Heat Dissipation: Lower losses result in less heat generation.
• Easy Mounting: TO-220F package simplifies mounting and heat sinking.

Additional Details:

The SVF4N60F's 600V rating makes it suitable for off-line power supplies and other applications dealing with high voltages. It's crucial to consult the datasheet for the specific R_DS(on) value at the operating gate voltage and drain current. The gate threshold voltage (V_GS(th)) is also important for proper gate drive design. The maximum drain current (I_D) must be considered to prevent overcurrent conditions. The TO-220F package electrically isolates the drain from the mounting surface, simplifying heat sink attachment. Proper gate drive circuitry is important for optimal switching performance. A gate resistor can help to dampen oscillations and improve EMI performance. Operating the device within its specified maximum ratings is essential for long-term reliability. Adequate heat sinking is necessary to keep the junction temperature within acceptable limits.
