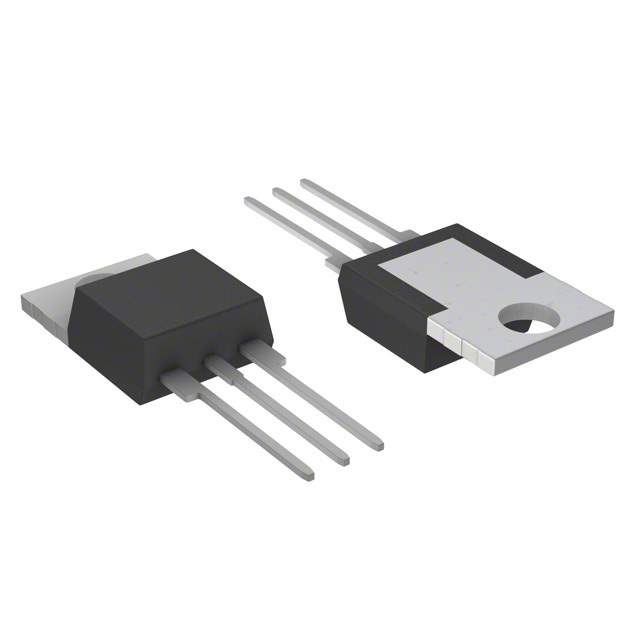

S8020LTP Real Image
Same model may have multiple batches, images only for reference.

S8020LTP

Part No S8020LTP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR ISOLATED 800V 20A TO-220AB / SCR 800V 20A(RMS) 300A 3-Pin(3+Tab) TO-220AB Isolated Tube
Datasheet
S8020LTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 30mA
Voltage - On State (Vtm) (Maximum) 1.6V
Current - On State (It (AV)) (Maximum) 12.8A
Current - On State (It (RMS)) (Maximum) 20A
Current - Hold (Ih) (Maximum) 40mA
Current - Off State (Maximum) 20μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 255A, 300A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-3 Isolated Tab
Manufacturer Package TO-220AB-L
Win Source Part Number 793698-S8020LTP
Popularity Medium
Supply and Demand Status Limited
Family Name S8020L
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian S8020LTP CAD Model

Description

The S8020LTP SCR is a standard recovery SCR that is part of the S8020L family.

  • Voltage-off state: 800V
  • Current-non rep. surge 50, 60Hz (Itsm): 255A, 300A
  • Current-on state (It (RMS)) (Maximum): 20A
  • Voltage-gate trigger (Vgt) (Maximum): 1.5V
  • Current-gate trigger (Igt) (Maximum): 30mA
  • Current-hold (Ih) (Maximum): 40mA
  • Voltage-on state (Vtm) (Maximum): 1.6V
  • Current-on state (It (AV)) (Maximum): 12.8A
  • Current-off state (Maximum): 20μA
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
