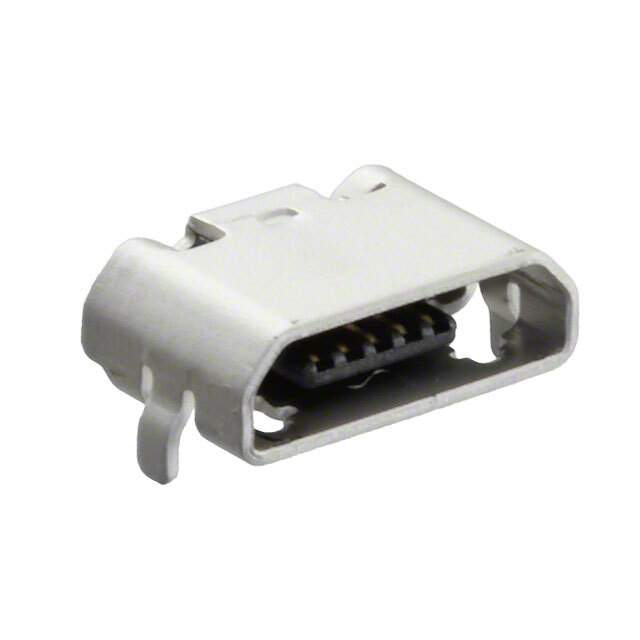

1051640001 Real Image
Same model may have multiple batches, images only for reference.

1051640001

Part No 1051640001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Style SMT, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Pick and Place
Temperature Range - Operating -35°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 736037-1051640001
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1051640001 CAD Model

Description

The Molex 736037-1051640001 is a USB micro B receptacle connector with a right-angle SMT and through-hole mounting style.

  • Features: Pick and place capabilities, gold contact finish, shielded
  • Material Flammability Rating: UL94 V-0
  • Number of Contacts: 5
  • Voltage Rating: 30VAC
  • Mounting Feature: Horizontal
  • Mating Cycle: 10,000
  • Operating Temperature Range: -35°C to 85°C
  • Shell Material: Steel
  • Shielding Material: Stainless Steel
  • Current Rating: 1A, 1.8A
