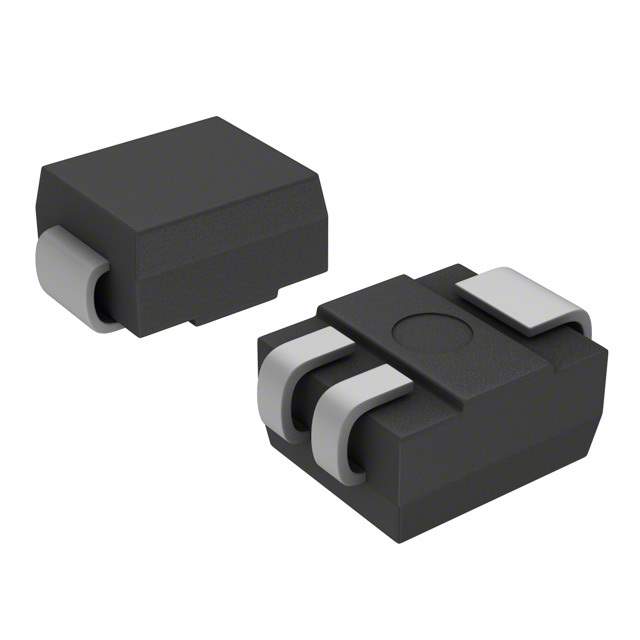

Same model may have multiple batches, images only for reference.

S6N1RP

Name: S6N1RP
Brand: Littelfuse Inc.
SKU: 1090291
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S6N1RP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Description	SCR 600V 1A COMPAK / SCR 600 V 1 A Standard Recovery Surface Mount Compak
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Package	Tape & Reel
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	10 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	640 mA
Current - On State (It (RMS)) (Max)	1 A
Current - Hold (Ih) (Max)	30 mA
Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	25A, 30A
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	Compak
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Other Names	S6N1RP-ND,F10920CT,F10920TR,-S6N1RP,F10920DKR
Standard Package	2,500
Win Source Part Number	1090291-S6N1RP
Ultra Librarian 3D Model	Ultra Librarian S6N1RP CAD Model

Description

The S6N1RP is a thyristor SCR from Littelfuse Inc. designed for use in Discrete Semiconductor Products.

Category: Discrete Semiconductor Products
Package: DO-214AA, SMB (3 Leads), Compak package
Mounting: SMD (SMT) technology
Current Hold (Ih): 30 mA (Max)
Off State Voltage: 600 V
Gate Trigger Voltage: 1.5 V (Max)
Gate Trigger Current: 10 mA (Max)
On State Voltage: 1.6 V (Max)
On State Current (AV): 640 mA (Max)
On State Current (RMS): 1 A (Max)
Off State Current: 10 µA (Max)
Current Non-Rep Surge: 25A, 30A for 50, 60 Hz
Type: Standard recovery
Temperature Range: -40°C to 125°C
