Same model may have multiple batches, images only for reference.

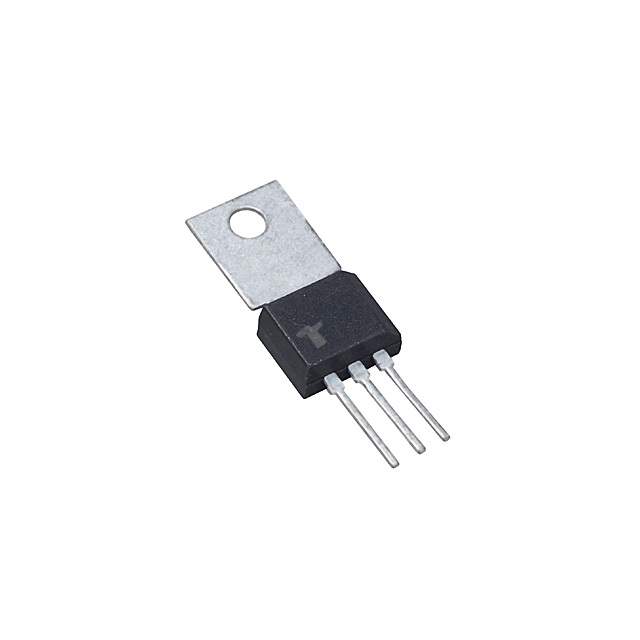

S6010F1 Real Image
Same model may have multiple batches, images only for reference.

S6010F1

Part No S6010F1
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S6010F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 15 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 6.4 A
Current - On State (It (RMS)) (Max) 10 A
Current - Hold (Ih) (Max) 30 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-202 Long Tab
Supplier Device Package TO-202
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278969-S6010F1
Ultra Librarian 3D Model Ultra Librarian S6010F1 CAD Model

Description

The 1278969-S6010F1 is a Standard Recovery SCR designed for discrete semiconductor products.

  • Maximum Voltage Off State: 600V
  • Maximum Voltage Gate Trigger: 1.5V
  • Maximum Current Gate Trigger: 15mA
  • Maximum Current On State (It (AV)): 6.4A
  • Maximum Current On State (It (RMS)): 10A
  • Current Hold (Ih): 30mA
  • Current Off State: 10 µA
  • Package: TO-202 Long Tab
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 125°C
  • Product Status: Obsolete
  • Win Source Part Number: 1278969-S6010F1
