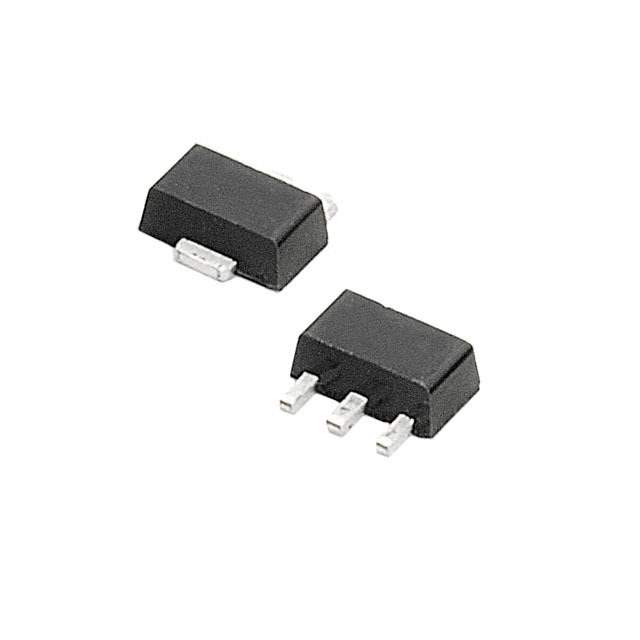

S4X8BSRP Real Image
Same model may have multiple batches, images only for reference.

S4X8BSRP

Part No S4X8BSRP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR SEN 600V .8A 200UA SOT89 TR
Datasheet
S4X8BSRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 200μA
Voltage - On State (Vtm) (Max) 1.7V
Current - On State (It (AV)) (Max) 510mA
Current - On State (It (RMS)) (Max) 800mA
Current - Hold (Ih) (Max) 5mA
Current - Off State (Max) 3μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8A, 10A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 131334-S4X8BSRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S4X8BSRP CAD Model

Description

The Littelfuse Inc. 131334-S4X8BSRP is a sensitive gate SCR type electronic component with a voltage rating of 400V and a maximum gate trigger voltage of 800mV.

  • On-state Voltage (Max): 1.7V
  • On-state Current (Max): 510mA
  • Off-state Current (Max): 3μA
  • Non-repetitive Surge Currents: 8A @ 50Hz and 10A @ 60Hz respectively
  • Gate Trigger Current (Max): 200μA
  • Hold Current (Max): 5mA
  • Package: SOT-89
  • Application: discrete semiconductor products
  • Operating Temperature: -40°C to 125°C
