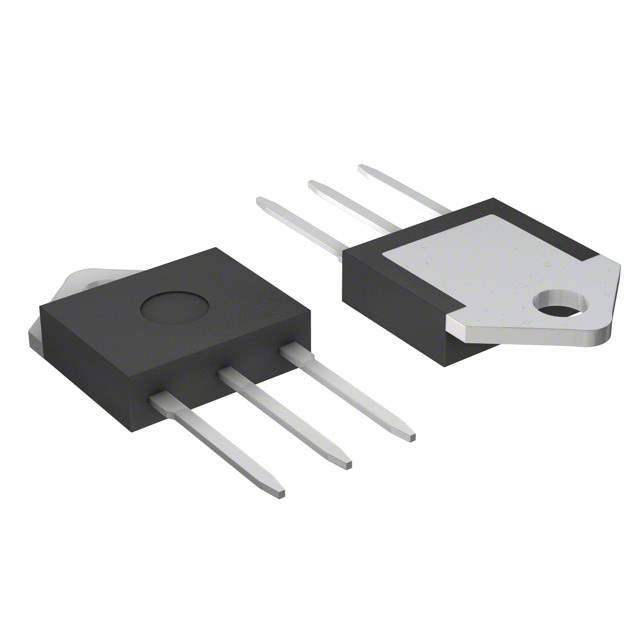

S2055M Real Image
Same model may have multiple batches, images only for reference.

S2055M

Part No S2055M
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S2055M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 40 mA
Voltage - On State (Vtm) (Max) 1.8 V
Current - On State (It (AV)) (Max) 35 A
Current - On State (It (RMS)) (Max) 55 A
Current - Hold (Ih) (Max) 60 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 550A, 650A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-218-3, TO-218AC
Supplier Device Package TO-218 Non-Isolated Tab
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278989-S2055M
Ultra Librarian 3D Model Ultra Librarian S2055M CAD Model

Description

The S2055M is an electronic component manufactured by Littelfuse Inc. It is a thyristor which is used in various electronic circuits for controlling the flow of electric current.

  • Maximum Voltage Rating: 200V
  • Maximum Current Rating: 55A
