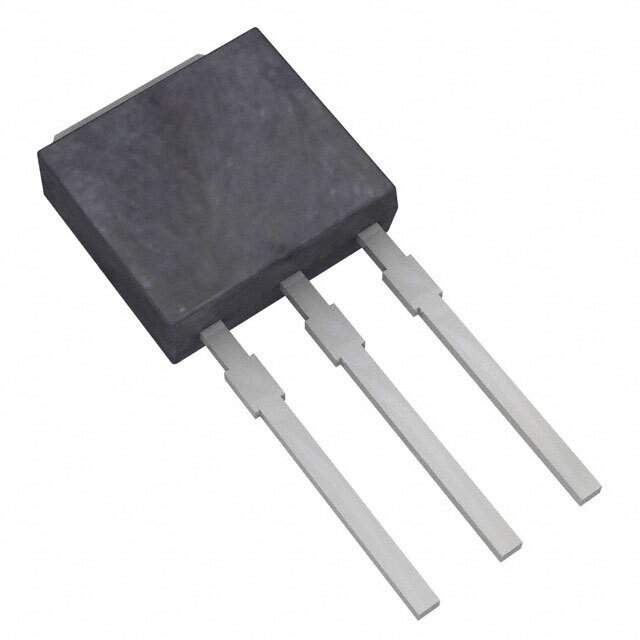

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 2.5 A
Current - On State (It (RMS)) (Max) 4 A
Current - Hold (Ih) (Max) 6 mA
Current - Off State (Max) 2 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 25A, 30A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package TO-251 (V-Pak/I-Pak)
Other Names -S2004VS2
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1279040-S2004VS2
Ultra Librarian 3D Model Ultra Librarian S2004VS2 CAD Model

Description

The 1279040-S2004VS2 is a thyristor SCR device that is used in Discrete Semiconductor Products.

  • Application: Discrete Semiconductor Products
  • SCR Type: Sensitive Gate
  • Voltage: 200 V
  • Maximum Gate Trigger Voltage: 800 mV
  • Maximum Gate Trigger Current: 200 µA
  • Maximum Current Rating: 2.5 A
  • Maximum RMS Current Rating: 4 A
  • Maximum On-State Voltage: 1.6 V
  • Maximum Off-State Current: 2 µA
  • Non-Repetitive Surge Current Rating: 25A and 30A @ 50Hz and 60Hz respectively
  • Packages: TO-251-3 short leads, IPak, and TO-251AA
  • RoHS Compliance: Non-compliant
