Same model may have multiple batches, images only for reference.

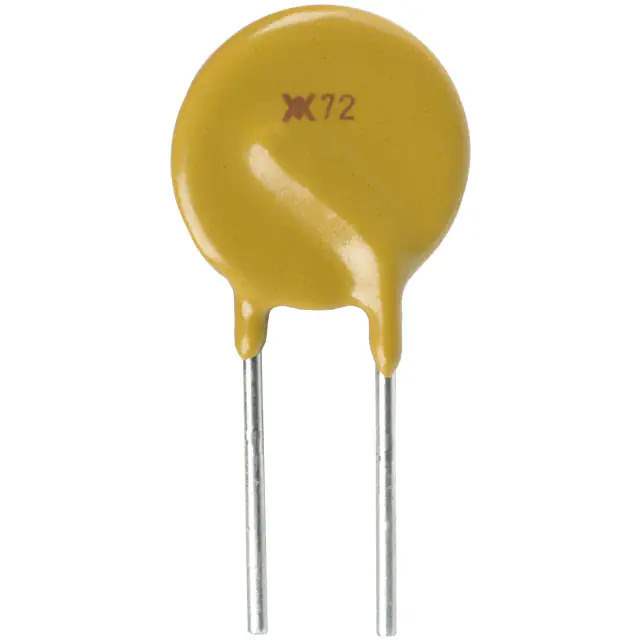

RXEF110-2 Real Image
Same model may have multiple batches, images only for reference.

RXEF110-2

Part No RXEF110-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 1.1A RADIAL / Polymeric PTC Resettable Fuse 72V 1.1 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RXEF
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 72V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 40 A
Time to Trip 8.2 s
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 380 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.504" Dia x 0.118" T (12.80mm x 3.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 851183-RXEF110-2
Ultra Librarian 3D Model Ultra Librarian RXEF110-2 CAD Model

Description

The RXEF110-2 is a polymeric PTC resettable fuse from Littelfuse Inc.'s PolySwitch® RXEF series.

  • Product Name: RXEF110-2
  • Manufacturer: Littelfuse Inc.
  • Series: PolySwitch® RXEF
  • Maximum Voltage: 72V
  • Maximum Current: 40A
  • Trip Current: 2.2A
  • Hold Current: 1.1A
  • Time to Trip: 8.2 seconds
  • Package: Radial, Disc
  • Dimensions: 0.504" Dia x 0.118" T (12.80mm x 3.00mm)
  • Resistance (initial): 150 mOhms
  • Resistance (post trip): 380 mOhms
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Certifications: CQC, CSA, TUV, UL
