Same model may have multiple batches, images only for reference.

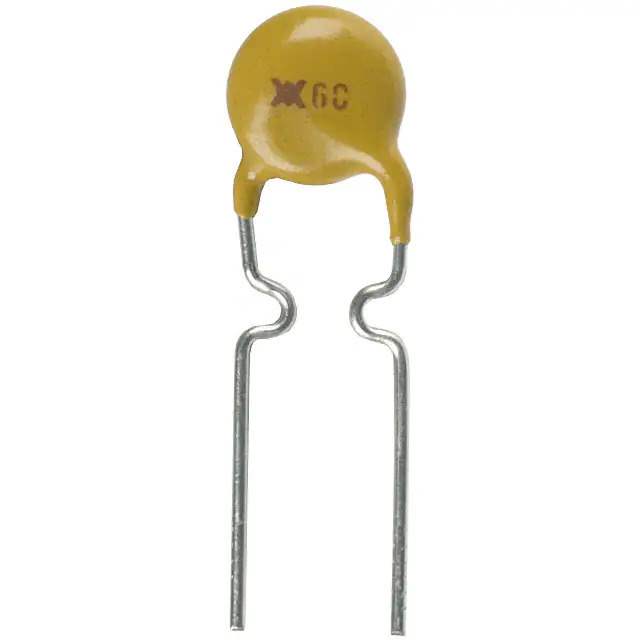

RXEF017 Real Image
Same model may have multiple batches, images only for reference.

RXEF017

Part No RXEF017
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 170MA RADIAL
Datasheet
RXEF017 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RXEF
Package BagBag
Product Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 170 mA
Current - Trip (It) 340 mA
Current - Max 40 A
Time to Trip 3 s
Resistance - Initial (Ri) (Min) 3.3 Ohms
Resistance - Post Trip (R1) (Max) 8 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662108-RXEF017
Ultra Librarian 3D Model Ultra Librarian RXEF017 CAD Model

Description

The RXEF017 is a polymeric PTC resettable fuse designed for overcurrent protection in various electronic circuits.

  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 40A
  • Hold Current: 170mA
  • Trip Current: 340mA
  • Time to Trip: 3 seconds
  • Package: Radial, Disc
  • Manufacturer: Littelfuse Inc.
