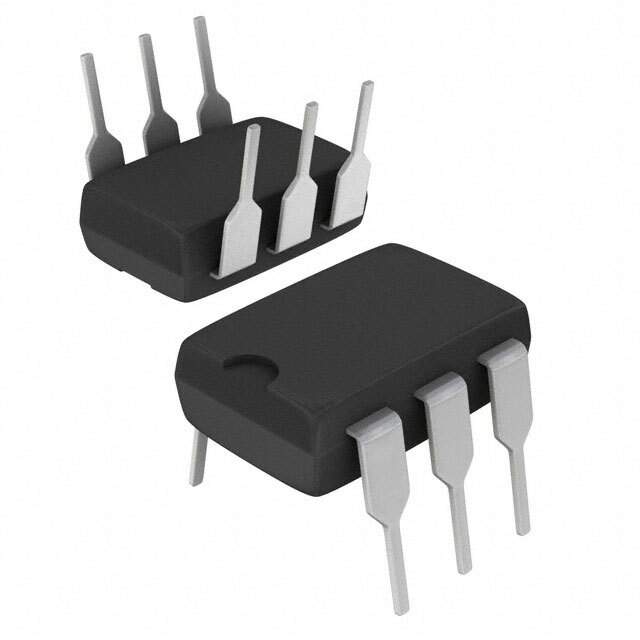

IL766B-2 Real Image
Same model may have multiple batches, images only for reference.

IL766B-2

Part No IL766B-2
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler, Photodarlington Output, AC Input, Internal RBE
Datasheet
IL766B-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 900% @ 500μA
Turn On / Turn Off Time (Typ) 200μs, -
Input Type AC, DC
Output Type Darlington
Output Voltage MAX 60V
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 1V
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Win Source Part Number 1185451-IL766B-2
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name IL766B
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IL766B-2 CAD Model

Description

The Vishay Semiconductor Opto Division IL766B-2 is a Darlington output optocoupler with a current transfer ratio of 900% @ 500μA.

  • Maximum Forward Voltage: 1.25V
  • Maximum Saturation Voltage: 1V
  • Package: 6-DIP (0.300", 7.62mm)
  • Isolation Voltage: 5300Vrms
  • Rise/Fall Time: Not Specified
  • Turn On/Off Time: 200μs/-
  • Application: Isolators
  • Operating Temperature Range: -55°C to 100°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
