Same model may have multiple batches, images only for reference.

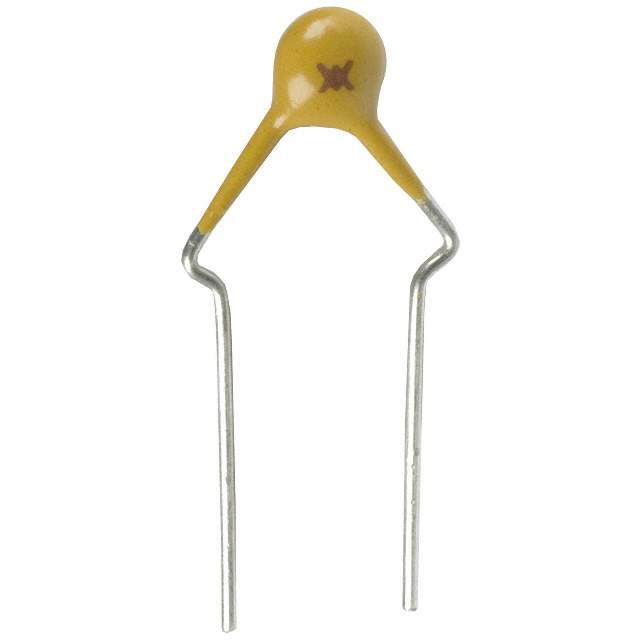

RXE005 Real Image
Same model may have multiple batches, images only for reference.

RXE005

Part No RXE005
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH RXE SERIES 0.05A HOLD
Datasheet
RXE005 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 50mA
Current - Trip (It) 100mA
Time to Trip 5s
Resistance - Initial (Ri) (Min) 7.3 Ohm
Resistance - Post Trip (R1) (Max) 20 Ohm
Mounting Through Hole
Dimension 0.315" Dia x 0.120" W (8.00mm x 3.00mm)
Height - Seated (Max) 0.327" (8.30mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 210960-RXE005
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RXE005 CAD Model

Description

The Littelfuse Inc. electronic component with Win Source Part Number 210960-RXE005 is a polymeric type circuit protection product.

  • Approvals: CSA, TUV, and UL
  • Height Seated: 0.327 inches or 8.3mm
  • Mounting Type: through hole
  • Voltage Maximum: 60V
  • Current Maximum: 40A
  • Current Hold: 50mA
  • Current Trip: 100mA
  • Time to Trip: 5s
  • Status: obsolete
  • Dimension: 0.315 inches diameter x 0.120 inches width or 8.00mm x 3.00mm
  • Resistance Initial: 7.3 Ohm
  • Resistance Post Trip: 20 Ohm
  • Supply and Demand Status: sufficient
