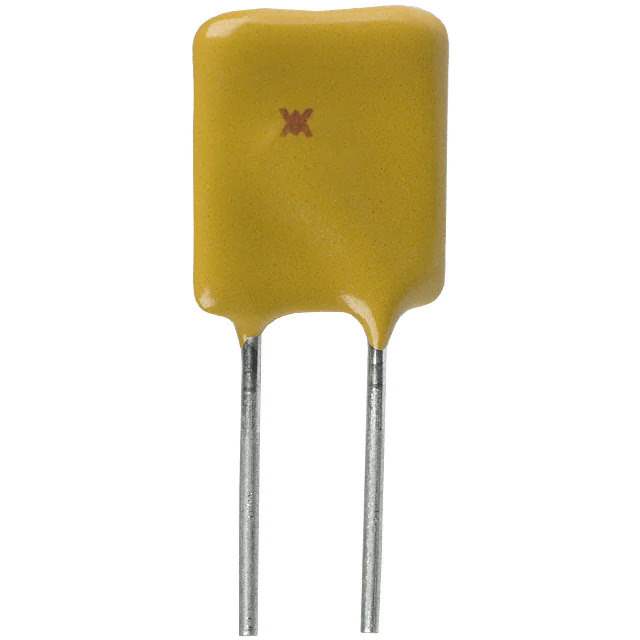

RUEF800 Real Image
Same model may have multiple batches, images only for reference.

RUEF800

Part No RUEF800
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 8A RADIAL / Polymeric PTC Resettable Fuse 30V 8 A Ih Through Hole Radial, Disc
Datasheet
RUEF800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RUEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 8 A
Current - Trip (It) 16 A
Current - Max 100 A
Time to Trip 18.8 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 20 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.850" L x 0.118" W (21.60mm x 3.00mm)
Height - Seated (Max) 1.118" (28.40mm)
Lead Spacing 0.400" (10.15mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 250 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662011-RUEF800
Ultra Librarian 3D Model Ultra Librarian RUEF800 CAD Model

Description

The 662011-RUEF800 is a PolySwitch resettable fuse designed for circuit protection.

  • Type: PolySwitch Resettable Fuse
  • Series: PolySwitch RUEF
  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Hold Current (Ih): 8A
  • Trip Current (It): 16A
  • Time to Trip: 18.8 seconds
  • Mounting Type: Through-Hole
  • Package: Radial Disc
  • Operating Temperature: -40°C to 85°C
  • Resistance (Initial): 5mOhms
  • Resistance (Post Trip): 20mOhms
  • Status: Active
  • Manufacturer: Littelfuse Inc.
  • Approvals: CQC, CSA, TUV, and UL
