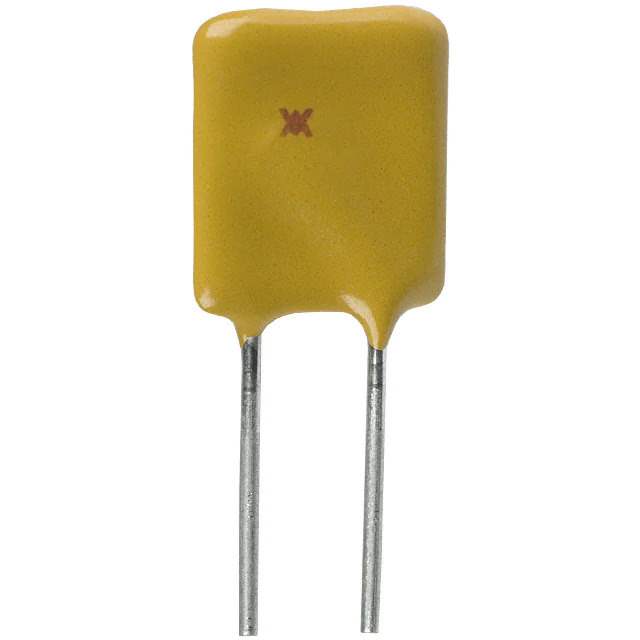

RUEF700 Real Image
Same model may have multiple batches, images only for reference.

RUEF700

Part No RUEF700
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 7A RADIAL
Datasheet
RUEF700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RUEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 7 A
Current - Trip (It) 14 A
Current - Max 100 A
Time to Trip 17.5 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 30 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.752" L x 0.118" W (19.10mm x 3.00mm)
Height - Seated (Max) 1.020" (25.90mm)
Lead Spacing 0.400" (10.15mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 250 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662010-RUEF700
Ultra Librarian 3D Model Ultra Librarian RUEF700 CAD Model

Description

The RUEF700 is a polymeric PTC resettable fuse from the PolySwitch® RUEF series.

  • Purpose: designed to provide overcurrent protection in circuit applications
  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Hold Current: 7A
  • Trip Current: 14A
  • Size: 0.752" L x 0.118" W (19.10mm x 3.00mm)
  • Seated Height: 1.020" (25.90mm)
  • Package: radial, disc
  • Mounting: through-hole
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Product Status: active
