0805L020/24YR Littelfuse Inc. – Price, Stock & Datasheet

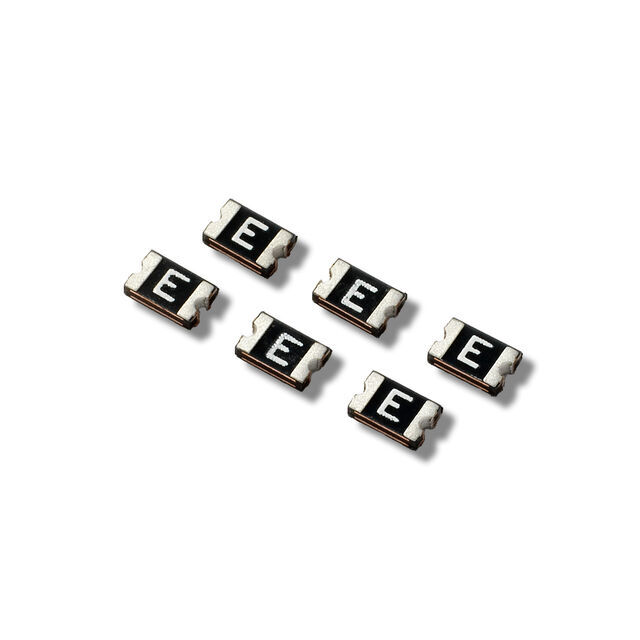

Same model may have multiple batches, images only for reference.

0805L020/24YR

Part No 0805L020/24YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Polymeric PTC Resettable Fuse 24V 200 mA Ih Surface Mount 0805 (2012 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Series POLY-FUSE®, 0805L
Packaging Reel - TR
Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 500 mA
Current - Max 100 A
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 500 mOhms
Resistance - Post Trip (R1) (Max) 3.5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency cURus
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1477878-0805L020/24YR
Ultra Librarian 3D Model Ultra Librarian 0805L020/24YR CAD Model
