Same model may have multiple batches, images only for reference.

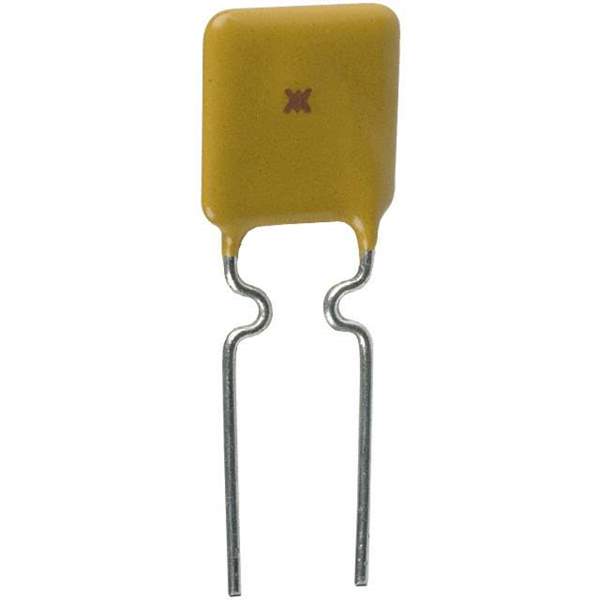

RUEF250-AP Real Image
Same model may have multiple batches, images only for reference.

RUEF250-AP

Part No RUEF250-AP
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 2.5A RADIAL / PolySwitch Resettable Devices Radial-leaded Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2.5A
Current - Trip (It) 5A
Time to Trip 10.3s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Maximum) 70 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.449" L x 0.118" W (11.40mm x 3.00mm)
Height - Seated (Maximum) 0.720" (18.30mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804638-RUEF250-AP
Ultra Librarian 3D Model Ultra Librarian RUEF250-AP CAD Model

Description

{"ProductId":743338,"FormattedDescription":"

The Littelfuse Inc. RUEF250-AP polymeric fuse is a reliable and efficient component that is ideal for use in a variety of electronic applications.

  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Current Trip: 5A
  • Time to Trip: 10.3s
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimensions: 0.449" L x 0.118" W (11.40mm x 3.00mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Resistance: 20 mOhms
  • Post-Trip Resistance: 70 mOhms
"}
