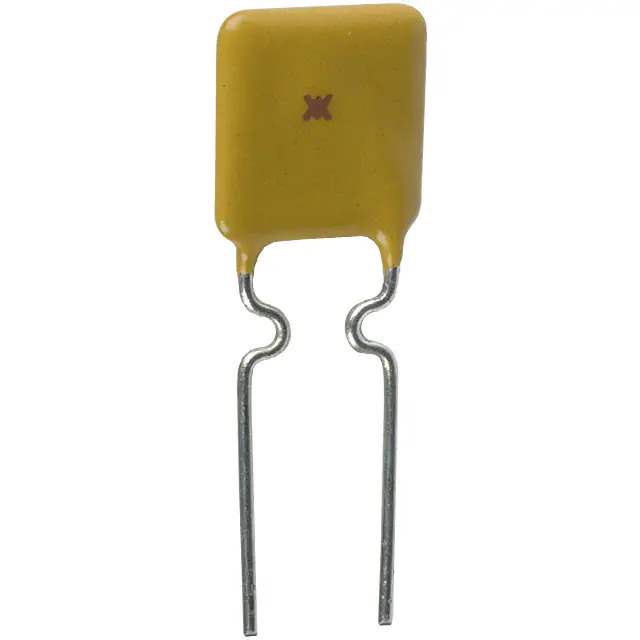

RUEF110 Real Image
Same model may have multiple batches, images only for reference.

RUEF110

Part No RUEF110
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.1A RADIAL / Polymeric PTC Resettable Fuse 30V 1.1 A Ih Through Hole Radial, Disc
Datasheet
RUEF110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RUEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 100 A
Time to Trip 6.6 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 170 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) 0.559" (14.20mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662004-RUEF110
Ultra Librarian 3D Model Ultra Librarian RUEF110 CAD Model

Description

The 662004-RUEF110 is a PolySwitch® RUEF series PTC resettable fuse from Littelfuse Inc.

  • Package: Bag
  • Size: 0.291" diameter and 0.118" thickness
  • Maximum Seated Height: 0.559"
  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Current Hold: 1.1A
  • Trip Current: 2.2A
  • Time to Trip: 6.6 seconds
  • Mounting: Through-Hole
  • Package: Radial, Disc
  • Operating Temperature Range: -40°C to 85°C
  • Initial Resistance: 70 mOhms
  • Post-Trip Resistance: 170 mOhms
  • Approvals: CQC, CSA, TUV, and UL
