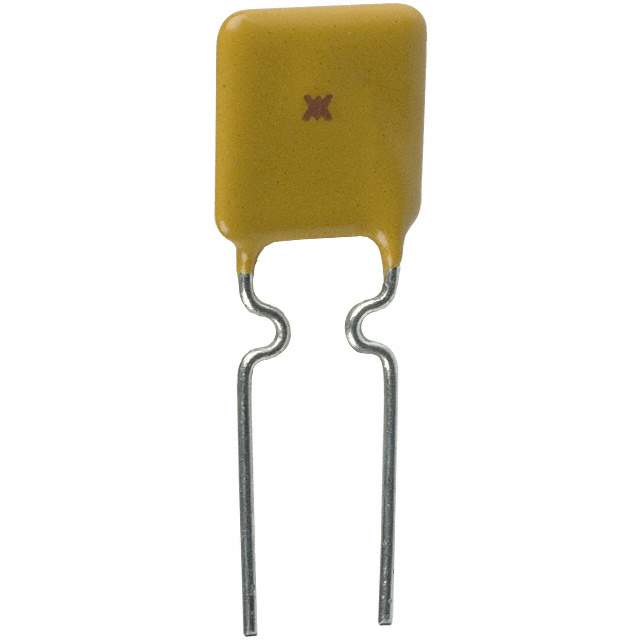

RUEF110-2 Real Image
Same model may have multiple batches, images only for reference.

RUEF110-2

Part No RUEF110-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 1.1A
Datasheet
RUEF110-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Max) 1.1A
Current - Trip (It) 2.2A
Time to Trip 6.6s
Resistance - Initial (Ri) (Min) 70 mOhm
Resistance - Post Trip (R1) (Max) 170 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.559" (14.20mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 1093071-RUEF110-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RUEF110-2 CAD Model

Description

The Littelfuse Inc. RUEF110-2 is a polymeric resettable fuse with a maximum voltage of 30V and a maximum current of 100A.

  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Height: 0.559" (14.20mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Mounting Type: Through-hole
  • Category: Circuit protection
  • Hold Current: 1.1A
  • Trip Current: 2.2A
  • Time to Trip: 6.6s
  • Approvals: CQC, CSA, TUV, and UL
  • Resistance Initial: 70 mOhm
  • Resistance Post-Trip: 170 mOhm
  • Supply and Demand Status: Balanced
