Same model may have multiple batches, images only for reference.

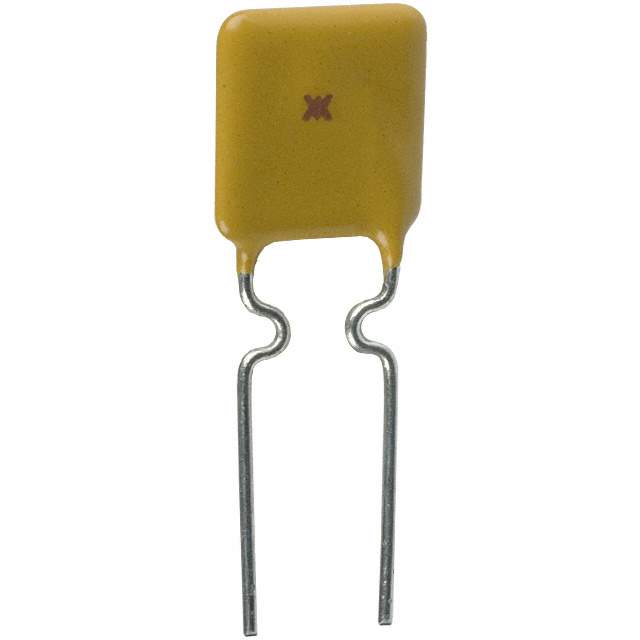

RUEF090-2 Real Image
Same model may have multiple batches, images only for reference.

RUEF090-2

Part No RUEF090-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 900MA RADIAL / PolySwitch Resettable Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current - Hold (Ih) (Maximum) 900mA
Current - Trip (It) 1.8A
Time to Trip 5.9s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Maximum) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Maximum) 0.480" (12.20mm)
Current - Max 100A
Voltage - Max 30V
Type Polymeric
Packaging Reel
Manufacturer Littelfuse Inc.
Win Source Part Number 805370-RUEF090-2
Supply and Demand Status Balance
Popularity Medium
MSL Level Not Applicable
Manufacturer Pack Quantity 3,000
Approvals CQC, CSA, TUV, UL
Lead Spacing 0.200" (5.08mm)
Ultra Librarian 3D Model Ultra Librarian RUEF090-2 CAD Model

Description

The Littelfuse Inc. 805370-RUEF090-2 is a through-hole polymeric type fuse with a maximum voltage of 30V and a maximum current of 100A.

  • Type: Polymeric Fuse
  • Mounting Type: Through Hole
  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Approvals: CQC, CSA, TUV, UL
  • Circuit Protection: Yes
  • Response Time: 5.9 seconds
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 3,000
