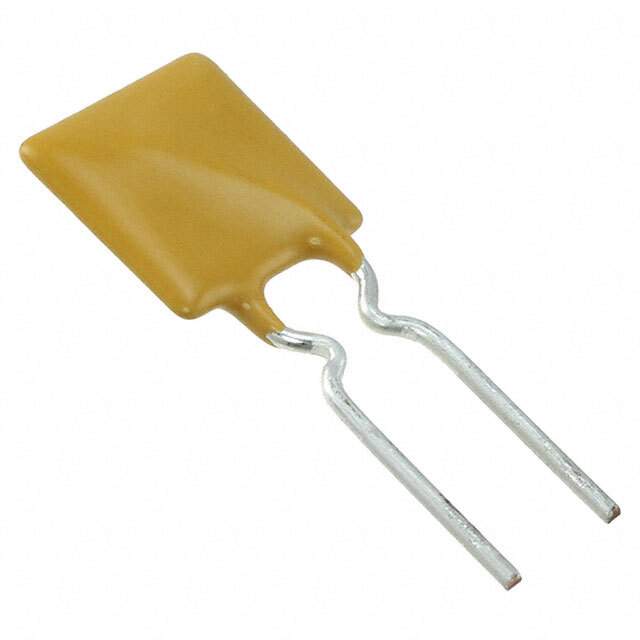

RGEF500K Real Image
Same model may have multiple batches, images only for reference.

RGEF500K

Part No RGEF500K
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 5A KINK / PTC Resettable Fuse 5A(hold) 8.5A(trip) 16V 2.6W 2s 0.015Ohm Radial 10.4 X 3 X 16.9mm Bulk
Datasheet
RGEF500K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RGEF
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 5A
Current - Trip (It) 8.5A
Time to Trip 2s
Resistance - Initial (Ri) (Minimum) 15 mOhm
Resistance - Post Trip (R1) (Maximum) 34 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Maximum) 0.563" (14.30mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793169-RGEF500K
Popularity Medium
Supply and Demand Status Limited
Family Name RGEF
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian RGEF500K CAD Model

Description

The RGEF500K is a polymeric resettable fuse manufactured by Littelfuse Inc.

  • Maximum Voltage: 16V
  • Trip Current: 8.5A
  • Time to Trip: 2s
  • Hold Current: 5A
  • Initial Resistance: 15 mOhm
  • Package: Radial, disc with lead spacing of 0.199" (5.05mm)
