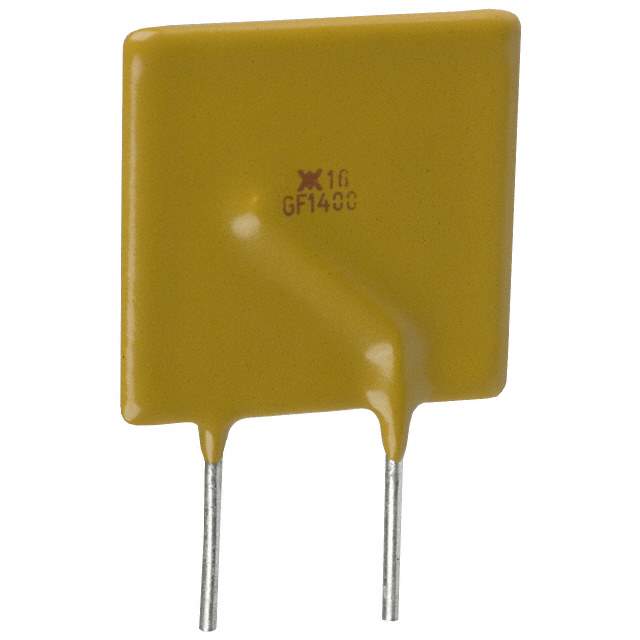

RGEF1400-2 Real Image
Same model may have multiple batches, images only for reference.

RGEF1400-2

Part No RGEF1400-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 14A RADIAL / Polymeric PTC Resettable Fuse 16V 14 A Ih Through Hole Radial, Disc
Datasheet
RGEF1400-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RGEF
Package Tape & Reel (TR),Cut Tape (CT)
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 14 A
Current - Trip (It) 23.8 A
Time to Trip 9 s
Resistance - Initial (Ri) (Min) 2.6 mOhms
Resistance - Post Trip (R1) (Max) 6.4 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.925" L x 0.114" W (23.50mm x 2.90mm)
Height - Seated (Max) 1.098" (27.90mm)
Lead Spacing 0.400" (10.15mm)
Approval Agency CSA, TUV, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names RGEF1400TR,RGEF1400DKR-ND,E54604-000,RGEF1400-2HF-ND,RGEF1400TR-ND,RGEF1400-2HF,RGEF1400-2TR,RF3270-000,RGEF1400-2HFTR,RGEF1400CT-ND,1294-RGEF1400-2,RGEF14002,RGEF1400DKRINACTIVE,RGEF1400-2-ND,RGEF1400-2CT,RGEF1400-2HFCT,RGEF1400CT,RGEF1400DKR
Standard Package 1,000
Win Source Part Number 1207568-RGEF1400-2
Ultra Librarian 3D Model Ultra Librarian RGEF1400-2 CAD Model

Description

The Littelfuse Inc. RGEF1400-2 is a PTC resettable fuse from the PolySwitch® RGEF series. Littelfuse Inc. RGEF1400-2

  • Series: PolySwitch® RGEF
  • Voltage Rating: 16V
  • Maximum Current Rating: 100A
  • Hold Current (Ih): 14A
  • Trip Current (It): 23.8A
  • Time to Trip: 9 seconds
  • Package/Case: Radial, Disc
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Resistance (initial): 2.6 mOhms
  • Resistance (post-trip): 6.4 mOhms
  • Status: Active
  • Popularity: Medium
