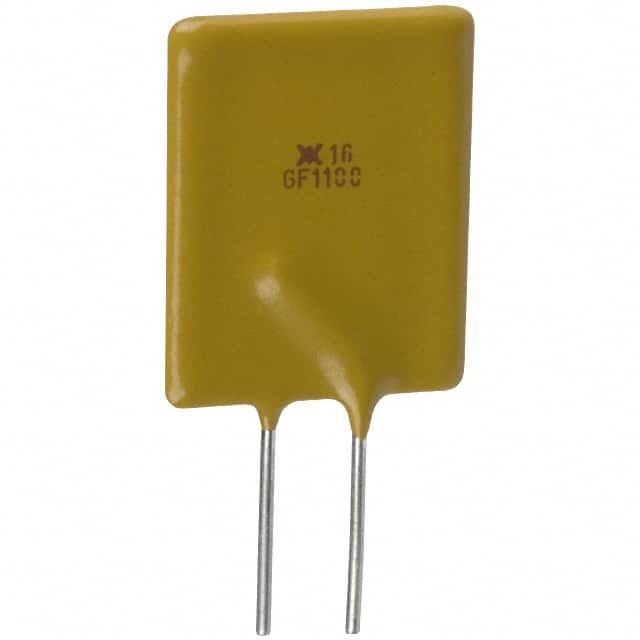

Same model may have multiple batches, images only for reference.
RGE1100
Same model may have multiple batches, images only for reference.

RGE1100

Part No RGE1100
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 11A RADIAL
Datasheet
RGE1100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®
Package Bulk
Product Status Obsolete
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 11 A
Current - Trip (It) 18.7 A
Current - Max 100 A
Time to Trip 7 s
Resistance - Initial (Ri) (Min) 3.7 mOhms
Resistance - Post Trip (R1) (Max) 8.9 mOhms
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.669" L x 0.098" W (17.00mm x 2.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CSA, TUV, UL
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 891688-RGE1100
Ultra Librarian 3D Model Ultra Librarian RGE1100 CAD Model

Description

The RGE1100 is a PolySwitch® PTC resettable fuse designed for circuit protection manufactured by Littelfuse Inc.

  • Series: PolySwitch®
  • Package: bulk package
  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Hold Current: 11A
  • Trip Current: 18.7A
  • Mounting Type: through-hole
  • Size: 0.669" L x 0.098" W (17.00mm x 2.50mm)
  • Status: obsolete
  • Approvals: CSA, TUV, and UL
